AD8065AR-REEL7 - Analog Devices

Description: AD8065 - Video Amplifier, 1 Func, Bipolar, PDSO8

Download AD8065AR-REEL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

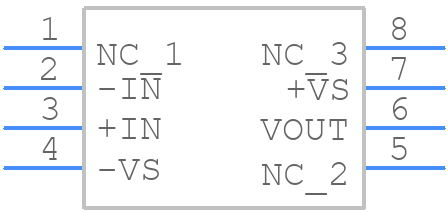

AD8065AR-REEL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD8065AR-REEL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - AD8065AR-REEL7-
click to zoom
3D Models
AD8065AR-REEL7 - Analog Devices - 3D model - Small Outline Packages - AD8065AR-REEL7-
click to zoom

AD8065AR-REEL7 Details

  • Manufacturer Part Number:

    AD8065AR-REEL7

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    MS-012AA, SOIC-8

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Bias Current-Max (IIB) @25C:

    0.007 µA

  • Common-mode Reject Ratio-Min:

    85 dB

  • Common-mode Reject Ratio-Nom:

    100 dB

  • Frequency Compensation:

    NO

  • Input Offset Voltage-Max:

    1500 µV

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e0

  • Length:

    4.9 mm

  • Low-Bias:

    YES

  • Low-Offset:

    YES

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage-Nom (Vsup):

    -5 V

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR, 7 INCH

  • Peak Reflow Temperature (Cel):

    240

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Slew Rate-Min:

    130 V/us

  • Slew Rate-Nom:

    180 V/us

  • Supply Current-Max:

    7.4 mA

  • Supply Voltage Limit-Max:

    26.4 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    TIN LEAD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Unity Gain BW-Nom:

    145

  • Wideband:

    YES

  • Width:

    3.9 mm

AD8065AR-REEL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD8065AR-REEL7 involves keeping the input and output traces short and away from each other, using a solid ground plane, and decoupling the power supply pins with capacitors. A 4-layer PCB with a dedicated ground plane is recommended.
  • The gain resistors for the AD8065AR-REEL7 should be chosen based on the desired gain and bandwidth. A good starting point is to use 1% or 0.1% tolerance resistors with a value between 1 kΩ and 10 kΩ. The datasheet provides a gain resistor selection table to help with this process.
  • The maximum power dissipation for the AD8065AR-REEL7 is 670 mW, which is calculated based on the maximum junction temperature (150°C) and the thermal resistance of the package (125°C/W). The actual power dissipation will depend on the operating conditions and the PCB layout.
  • Yes, the AD8065AR-REEL7 can be used in a single-supply configuration, but it requires careful consideration of the input common-mode voltage range and the output voltage swing. The datasheet provides guidance on how to configure the op-amp for single-supply operation.
  • The AD8065AR-REEL7 has built-in ESD protection, but it's still important to follow proper handling and assembly procedures to prevent ESD damage. This includes using an ESD wrist strap or mat, storing the devices in anti-static packaging, and avoiding direct contact with the pins.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD8065AR-REEL7 Overview

Use the download button to access the AD8065AR-REEL7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD806, or try a keyword search, such as Operational Amplifiers
