AD8079ARZ - Analog Devices

Description: OP Amp Dual Current Fdbk6V 8-Pin SOIC

Download AD8079ARZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

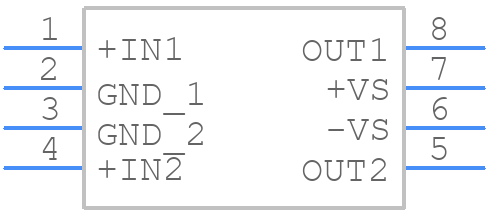

Symbol
AD8079ARZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD8079ARZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - (SO-8)
click to zoom

AD8079ARZ Details

  • Manufacturer Part Number:

    AD8079ARZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    PLASTIC, SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    R-8

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Amplifier Type:

    BUFFER

  • Average Bias Current-Max (IIB):

    10 µA

  • Bandwidth (3dB)-Nom:

    260 MHz

  • Bias Current-Max (IIB) @25C:

    6 µA

  • Input Offset Voltage-Max:

    20000 µV

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage Limit-Max:

    -6.3 V

  • Neg Supply Voltage-Nom (Vsup):

    -5 V

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Slew Rate-Nom:

    800 V/us

  • Supply Current-Max:

    11.5 mA

  • Supply Voltage Limit-Max:

    6.3 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

AD8079ARZ Frequently Asked Questions (FAQs)

  • A good layout and routing practice is to keep the analog and digital grounds separate, use a solid ground plane, and keep the input and output traces short and away from each other. Additionally, use a low-ESR capacitor for the power supply decoupling and place it close to the device.
  • The AD8079ARZ requires a dual power supply (±5V to ±15V) and a bias voltage (VCC) of 5V. Incorrect biasing can lead to reduced performance, increased distortion, and even device damage. Ensure the bias voltage is within the recommended range and the power supplies are well-regulated.
  • The AD8079ARZ can handle input signals up to ±10V peak-to-peak (±3.5Vrms) without distortion or clipping. Exceeding this limit can result in signal distortion, clipping, or even device damage.
  • To optimize the AD8079ARZ for low noise and high CMRR, ensure the input impedance is matched, use a low-noise power supply, and minimize the input capacitance. Additionally, use a high-quality, low-noise op-amp in the feedback loop and ensure the layout is optimized for low noise.
  • The AD8079ARZ has a maximum junction temperature of 150°C. Ensure good thermal conduction by using a heat sink or a thermally conductive PCB material. Keep the device away from heat sources, and ensure good airflow to prevent overheating.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD8079ARZ Overview

Use the download button to access the AD8079ARZ schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like AD807, or try a keyword search, such as Buffer Amplifiers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
