AD807A-155BRZ - Analog Devices

Description: AD807A-155BRZ, Phase Frequency Detector 16-Pin SOIC

Download AD807A-155BRZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

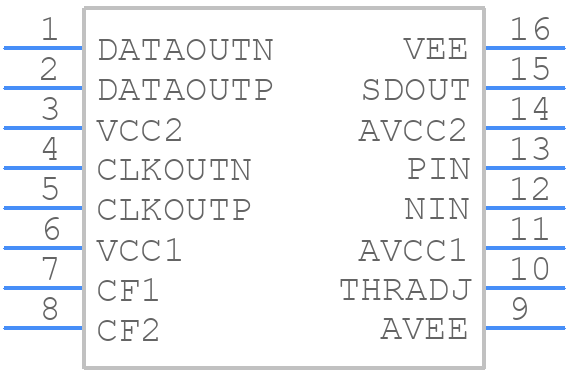

Symbol
AD807A-155BRZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD807A-155BRZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - R-16A (SOIC)
click to zoom
3D Models
AD807A-155BRZ - Analog Devices - 3D model - Small Outline Packages - R-16A (SOIC)
click to zoom

AD807A-155BRZ Details

  • Manufacturer Part Number:

    AD807A-155BRZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    SOIC

  • Package Description:

    0.150 INCH, SOIC-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    R-16

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    5A991.B.3

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    3

  • Applications:

    SDH; SONET

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    9.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    0.0395 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Telecom IC Type:

    ATM/SONET/SDH SUPPORT CIRCUIT

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

AD807A-155BRZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD807A-155BRZ involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
  • To ensure proper biasing, connect the VCC pin to a stable voltage source between 4.5V and 5.5V, and the GND pin to a solid ground plane. The input common-mode voltage should be within 1.5V of the VCC voltage. Additionally, ensure that the output load is within the recommended range of 1kΩ to 10kΩ.
  • The maximum allowable input voltage for the AD807A-155BRZ is 5.5V. Exceeding this voltage may damage the device. It's recommended to limit the input voltage to 5V or less to ensure reliable operation.
  • To minimize noise and EMI, use a low-pass filter at the input, keep the input and output traces short and away from each other, and use a shielded enclosure. Additionally, ensure that the device is properly decoupled with capacitors and that the power supply is well-regulated.
  • The recommended operating temperature range for the AD807A-155BRZ is -40°C to +125°C. Operating the device outside this range may affect its performance and reliability.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD807A-155BRZ Overview

Use the download button to access the AD807A-155BRZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD807, or try a keyword search, such as ATM/SONET/SDH ICs

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
