AD8099ACPZ-REEL7 - Analog Devices

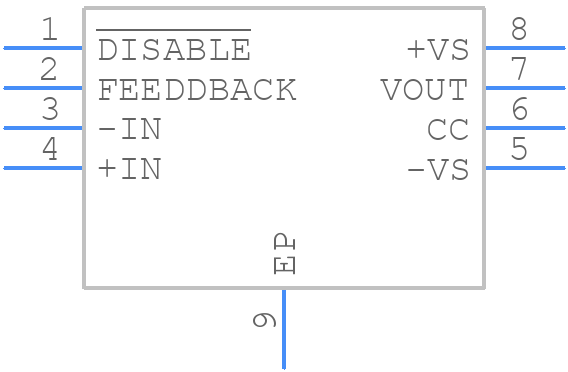

AD8099ACPZ-REEL7 Details

• Manufacturer Part Number:

  AD8099ACPZ-REEL7

• Brand Name:

  Analog Devices Inc

• Pbfree Code:

  No

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  SOIC

• Package Description:

  LFCSP-8

• Pin Count:

  8

• Manufacturer Package Code:

  CP-8-13

• Country Of Origin:

  Philippines

• ECCN Code:

  EAR99

• HTS Code:

  8542.33.00.01

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  10

• Amplifier Type:

  OPERATIONAL AMPLIFIER

• Architecture:

  VOLTAGE-FEEDBACK

• Average Bias Current-Max (IIB):

  13 µA

• Bias Current-Max (IIB) @25C:

  13 µA

• Common-mode Reject Ratio-Min:

  98 dB

• Common-mode Reject Ratio-Nom:

  105 dB

• Frequency Compensation:

  YES

• Input Offset Voltage-Max:

  500 µV

• JESD-30 Code:

  S-PDSO-N8

• JESD-609 Code:

  e3

• Length:

  3 mm

• Low-Bias:

  NO

• Low-Offset:

  YES

• Micropower:

  NO

• Moisture Sensitivity Level:

  3

• Neg Supply Voltage Limit-Max:

  -6.3 V

• Neg Supply Voltage-Nom (Vsup):

  -5 V

• Number of Functions:

  1

• Number of Terminals:

  8

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HVSON

• Package Equivalence Code:

  SOLCC8,.11,20

• Package Shape:

  SQUARE

• Package Style:

  SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

• Packing Method:

  TAPE AND REEL

• Peak Reflow Temperature (Cel):

  260

• Power:

  NO

• Programmable Power:

  NO

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  0.85 mm

• Slew Rate-Min:

  340 V/us

• Slew Rate-Nom:

  1350 V/us

• Supply Current-Max:

  16 mA

• Supply Voltage Limit-Max:

  6.3 V

• Supply Voltage-Nom (Vsup):

  5 V

• Surface Mount:

  YES

• Technology:

  BIPOLAR

• Temperature Grade:

  AUTOMOTIVE

• Terminal Finish:

  Matte Tin (Sn) - annealed

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Unity Gain BW-Nom:

  3800000

• Voltage Gain-Min:

  6300

• Wideband:

  YES

• Width:

  3 mm
