AD8105ABPZ - Analog Devices

Description: Analog & Digital Crosspoint ICs 600 MHz 32 x 16 Buffered

Download AD8105ABPZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
AD8105ABPZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints

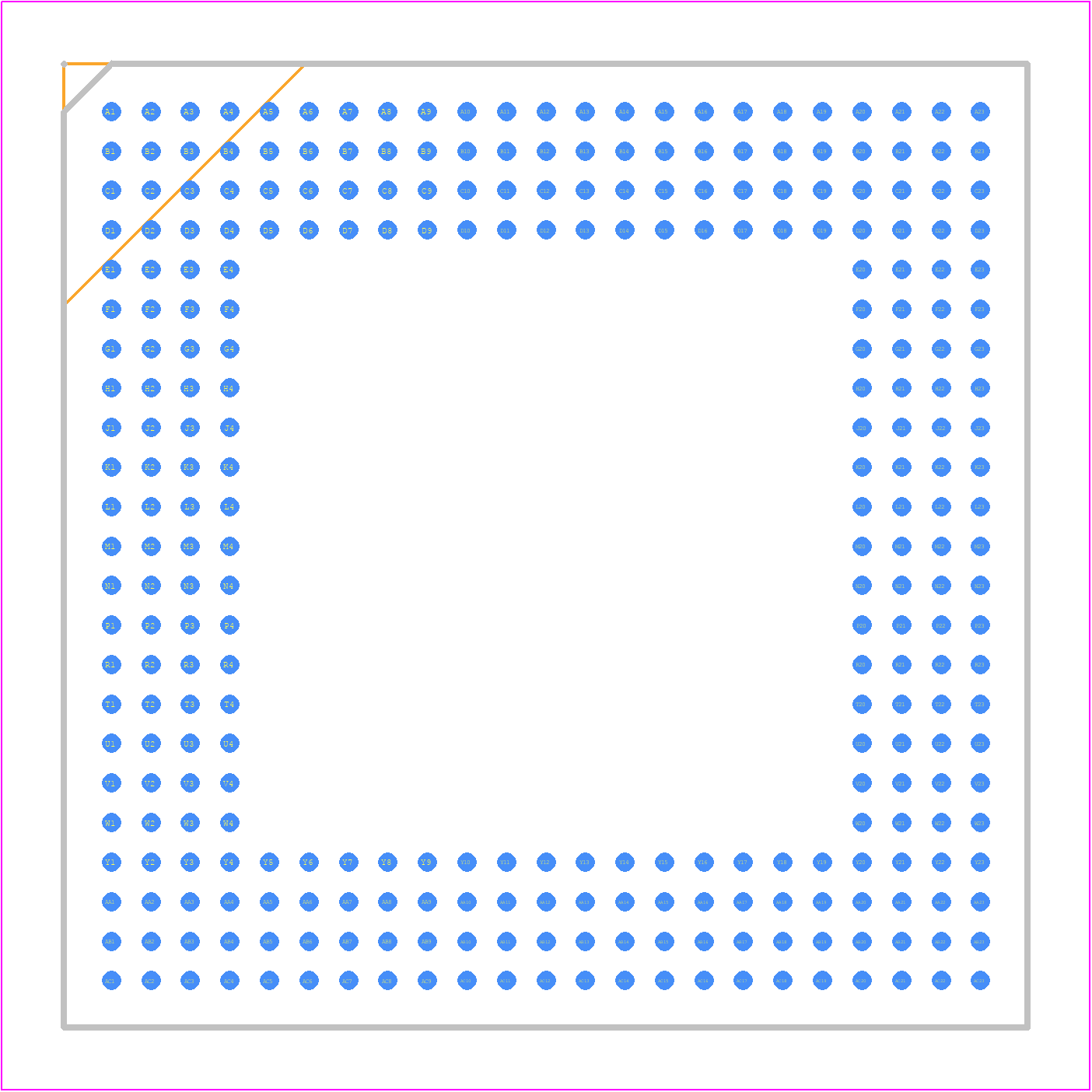

AD8105ABPZ - Analog Devices PCB footprint - BGA - BGA - BP-304
click to zoom
3D Models
AD8105ABPZ - Analog Devices - 3D model - BGA - BP-304
click to zoom

AD8105ABPZ Details

  • Manufacturer Part Number:

    AD8105ABPZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    BGA

  • Package Description:

    31 X 31 MM, ROHS COMPLIANT, MO-192BAN-2, BGA-304

  • Pin Count:

    304

  • Manufacturer Package Code:

    BP-304

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Analog IC - Other Type:

    CROSS POINT SWITCH

  • JESD-30 Code:

    S-PBGA-B304

  • JESD-609 Code:

    e1

  • Length:

    31 mm

  • Moisture Sensitivity Level:

    3

  • Neg Supply Voltage-Max (Vsup):

    -5.5 V

  • Neg Supply Voltage-Min (Vsup):

    -4.5 V

  • Neg Supply Voltage-Nom (Vsup):

    -2.5 V

  • Number of Channels:

    32

  • Number of Functions:

    1

  • Number of Terminals:

    304

  • Off-state Isolation-Nom:

    90 dB

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    BGA

  • Package Equivalence Code:

    BGA304,23X23,50

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.765 mm

  • Supply Current-Max (Isup):

    0.42 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    2.5 V

  • Surface Mount:

    YES

  • Switching:

    BREAK-BEFORE-MAKE

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    TIN SILVER COPPER

  • Terminal Form:

    BALL

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    BOTTOM

  • Width:

    31 mm

AD8105ABPZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD8105ABPZ involves keeping the input and output traces short and separate, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended.
  • The gain resistor values depend on the desired gain and bandwidth. A good starting point is to use the values recommended in the datasheet. For custom gains, use the gain equation provided in the datasheet and choose resistors with 1% tolerance or better.
  • The maximum power dissipation of the AD8105ABPZ is 1.4W. To prevent overheating, ensure good airflow, use a heat sink if necessary, and keep the device away from other heat sources. Monitor the junction temperature and reduce power consumption if necessary.
  • Yes, the AD8105ABPZ can be used in a single-supply configuration. To do so, connect the negative supply pin to a voltage divider that sets the midpoint of the supply voltage, and use a voltage reference to set the output common-mode voltage.
  • Use a low-pass filter at the input or output of the AD8105ABPZ to filter out high-frequency noise. A simple RC filter or a more complex active filter can be used, depending on the specific noise requirements.
