Part Image

AD810AN - Analog Devices

Description: Video Amplifiers Low Pwr Hi Spd w/ Disbale

Download AD810AN Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

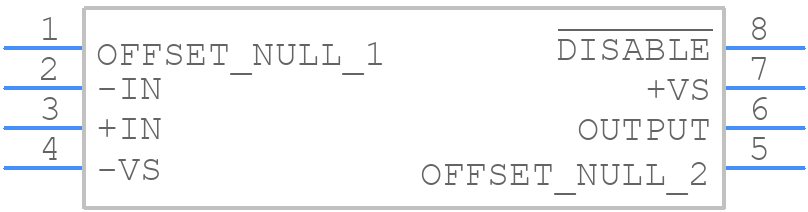

Symbol
AD810AN - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD810AN - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 8-Lead Plastic Dual In-Line Package [PDIP] (N-8)
click to zoom
3D Models
AD810AN - Analog Devices - 3D model - Dual-In-Line Packages - 8-Lead Plastic Dual In-Line Package [PDIP] (N-8)
click to zoom

AD810AN Details

  • Manufacturer Part Number:

    AD810AN

  • Source Url Status Check Date:

    2013-05-01 14:56:23.552

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    DIP

  • Package Description:

    MINI, PLASTIC, DIP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    N-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    7.5 µA

  • Common-mode Reject Ratio-Min:

    56 dB

  • Common-mode Reject Ratio-Nom:

    64 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    7500 µV

  • JESD-30 Code:

    R-PDIP-T8

  • JESD-609 Code:

    e0

  • Length:

    9.88 mm

  • Low-Bias:

    NO

  • Low-Offset:

    NO

  • Micropower:

    NO

  • Neg Supply Voltage Limit-Max:

    -18 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Screening Level:

    MIL-STD-883

  • Seated Height-Max:

    5.33 mm

  • Slew Rate-Nom:

    1000 V/us

  • Supply Current-Max:

    10 mA

  • Supply Voltage Limit-Max:

    18 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    NO

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    TIN LEAD

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Voltage Gain-Min:

    6309.573445

  • Width:

    7.62 mm

AD810AN Frequently Asked Questions (FAQs)

  • The AD810AN is a high-speed op-amp and requires careful layout and grounding to minimize noise and oscillations. A star-grounded layout with a single-point ground connection is recommended. Additionally, keep the input and output traces short and away from each other to minimize capacitive coupling.
  • The compensation capacitor (Cc) value depends on the gain and bandwidth requirements of the application. A general rule of thumb is to start with a value of 10-20pF and adjust based on the desired frequency response. The datasheet provides a graph to help determine the optimal Cc value for a given gain and bandwidth.
  • The AD810AN can drive capacitive loads up to 100pF without oscillating, but this value may vary depending on the specific application and layout. It's recommended to add a series resistor (Rs) to the output to help stabilize the op-amp and prevent oscillations.
  • To minimize noise and distortion, use a low-noise power supply, add bypass capacitors to the power pins, and keep the input and output traces away from each other. Additionally, consider using a shielded enclosure and minimizing the circuit's overall gain to reduce noise and distortion.
  • Yes, the AD810AN can be used as a unity-gain buffer, but it's not the most suitable application due to its high gain-bandwidth product. The op-amp may oscillate or exhibit instability in this configuration. Consider using a dedicated unity-gain buffer op-amp like the AD8065 or AD812 for this application.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD810AN Overview

Use the download button to access the AD810AN schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD810, or try a keyword search, such as Operational Amplifiers
