AD810ANZ - Analog Devices

Description: AD810ANZ, Video Amplifier 350V/μs, 8-Pin PDIP

Download AD810ANZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

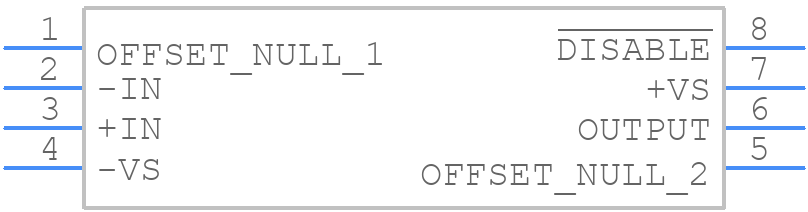

Symbol
AD810ANZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD810ANZ - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - (N-8)_1
click to zoom
3D Models
AD810ANZ - Analog Devices - 3D model - Dual-In-Line Packages - (N-8)_1
click to zoom

AD810ANZ Details

  • Manufacturer Part Number:

    AD810ANZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DIP

  • Package Description:

    DIP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    N-8

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Date Of Intro:

    1992-06-01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    CURRENT-FEEDBACK

  • Common-mode Reject Ratio-Nom:

    64 dB

  • Input Offset Voltage-Max:

    7500 µV

  • JESD-30 Code:

    R-PDIP-T8

  • JESD-609 Code:

    e3

  • Length:

    9.27 mm

  • Neg Supply Voltage Limit-Max:

    -18 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.33 mm

  • Slew Rate-Nom:

    1000 V/us

  • Supply Voltage Limit-Max:

    18 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    NO

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

AD810ANZ Frequently Asked Questions (FAQs)

  • The maximum power dissipation of the AD810ANZ is 670mW, which is calculated based on the maximum junction temperature (TJ) of 150°C and the thermal resistance (θJA) of 125°C/W.
  • To ensure stability, it's essential to follow proper PCB layout practices, minimize parasitic capacitance, and use a compensation capacitor (if necessary) as recommended in the datasheet. Additionally, consider using a series resistor (RS) to isolate the op-amp from the capacitive load.
  • For optimal performance, keep the input and output traces short and symmetrical, and avoid running digital signals near the analog signals. Use a solid ground plane, and consider using a guard ring around the op-amp to reduce noise and interference.
  • The AD810ANZ is rated for operation from -40°C to 125°C. However, the device's performance may degrade at higher temperatures. If you need to operate the device in a high-temperature environment, consider using a heat sink or a thermally enhanced package.
  • To prevent electrostatic discharge (ESD) damage, handle the device by the body or use an ESD wrist strap. Ensure that your workspace and equipment are ESD-protected, and consider using ESD-protected storage and shipping materials.
