AD8118ABPZ - Analog Devices

AD8118ABPZ Details

• Manufacturer Part Number:

  AD8118ABPZ

• Brand Name:

  Analog Devices Inc

• Pbfree Code:

  No

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

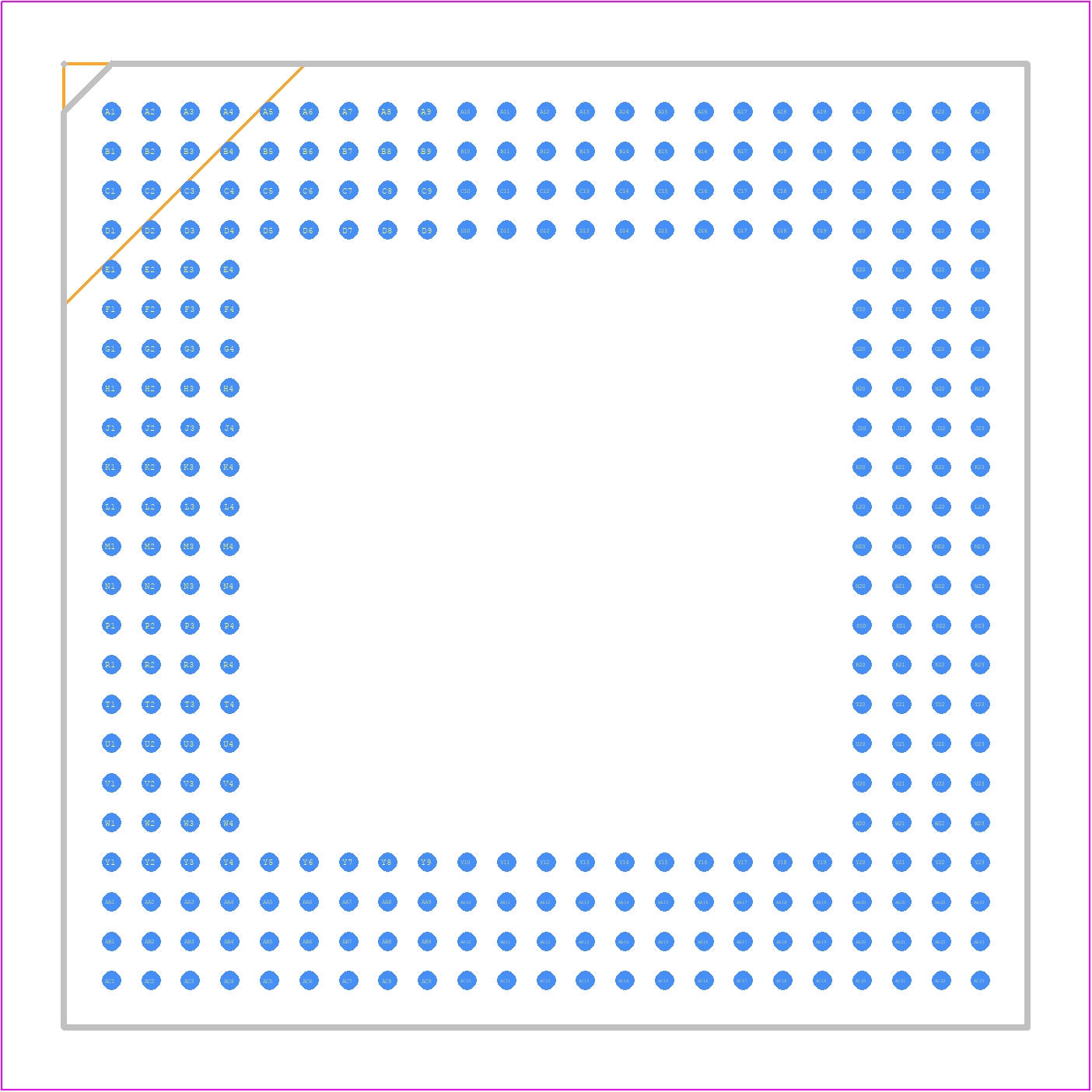

• Part Package Code:

  BGA

• Package Description:

  BGA-304

• Pin Count:

  304

• Manufacturer Package Code:

  BP-304

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  0

• Additional Feature:

  CAN ALSO OPERATE WITH 5V SINGLE SUPPLY

• Analog IC - Other Type:

  CROSS POINT SWITCH

• JESD-30 Code:

  S-PBGA-B304

• JESD-609 Code:

  e1

• Length:

  31 mm

• Moisture Sensitivity Level:

  3

• Neg Supply Voltage-Max (Vsup):

  -5.5 V

• Neg Supply Voltage-Min (Vsup):

  -4.5 V

• Neg Supply Voltage-Nom (Vsup):

  -2.5 V

• Number of Channels:

  32

• Number of Functions:

  1

• Number of Terminals:

  304

• Off-state Isolation-Nom:

  90 dB

• On-state Resistance-Max (Ron):

  80 Ω

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output:

  SEPARATE OUTPUT

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  BGA

• Package Equivalence Code:

  BGA304,23X23,50

• Package Shape:

  SQUARE

• Package Style:

  GRID ARRAY

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  1.765 mm

• Supply Current-Max (Isup):

  0.58 mA

• Supply Voltage-Max (Vsup):

  5.5 V

• Supply Voltage-Min (Vsup):

  4.5 V

• Supply Voltage-Nom (Vsup):

  2.5 V

• Surface Mount:

  YES

• Switch-off Time-Max:

  100 ns

• Switch-on Time-Max:

  100 ns

• Technology:

  BIPOLAR

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  TIN SILVER COPPER

• Terminal Form:

  BALL

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  BOTTOM

• Width:

  31 mm
