AD8120ACPZ-R2 - Analog Devices

Description: ANALOG DEVICES - AD8120ACPZ-R2 - LOWPASS FILTER, 200MHZ, LFCSP-32

Download AD8120ACPZ-R2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

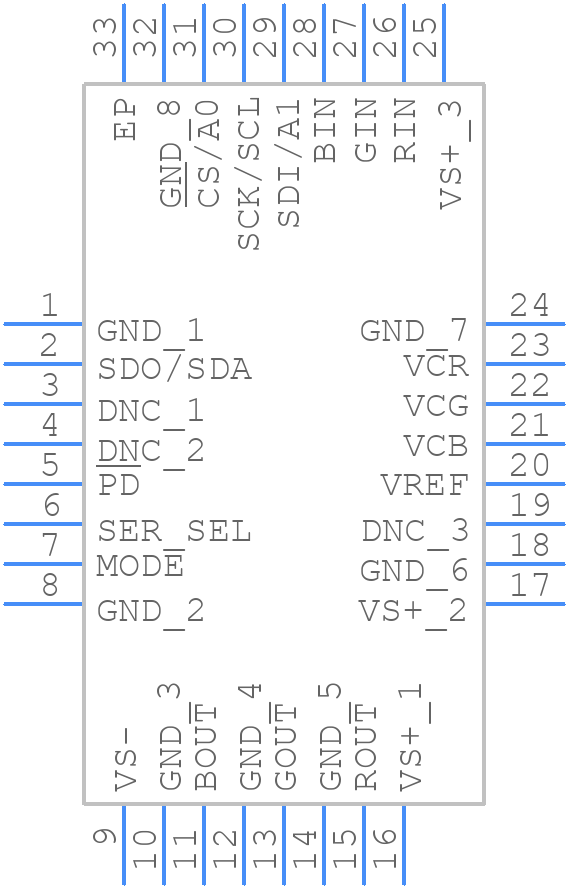

AD8120ACPZ-R2 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD8120ACPZ-R2 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-32-4 (LFCSP)
click to zoom
3D Models
AD8120ACPZ-R2 - Analog Devices - 3D model - Quad Flat No-Lead - CP-32-4 (LFCSP)
click to zoom

AD8120ACPZ-R2 Details

  • Manufacturer Part Number:

    AD8120ACPZ-R2

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    5 X 5 MM, ROHS COMPLIANT, MO-220VHHD-2, LFCSP-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    CP-32-4

  • Country Of Origin:

    Singapore

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    S-XQCC-N32

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Neg Supply Voltage-Max (Vsup):

    -5.5 V

  • Neg Supply Voltage-Min (Vsup):

    -4.5 V

  • Neg Supply Voltage-Nom (Vsup):

    -5 V

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

AD8120ACPZ-R2 Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD8120 involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended. Refer to the AD8120 evaluation board layout for a reference design.
  • The gain resistor values depend on the desired gain and bandwidth of the amplifier. Use the gain equation provided in the datasheet to calculate the required resistor values. For example, for a gain of 10, Rf = 1 kΩ and Rg = 10 kΩ. Ensure that the resistor values are within the recommended range to maintain stability and bandwidth.
  • The AD8120 can handle input voltages up to ±10 V, but the maximum differential input voltage is ±5 V. Exceeding these limits can cause damage to the device or affect its performance. Ensure that the input voltage is within the recommended range to maintain device reliability.
  • To reduce noise and EMI, use a low-noise power supply, add decoupling capacitors close to the device, and use a shielded enclosure. Additionally, keep the input and output traces away from each other and use a ground plane to reduce radiation. Use EMI filters or common-mode chokes if necessary.
  • Yes, the AD8120 can be used as a single-ended amplifier by tying one of the inputs to a fixed voltage (e.g., ground) and using the other input as the signal input. However, this configuration may affect the noise performance and bandwidth of the amplifier. Consult the datasheet and application notes for more information.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD8120ACPZ-R2 Overview

Use the download button to access the AD8120ACPZ-R2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD812, or try a keyword search, such as Other Signal Circuits
