AD8120ACPZ-R7 - Analog Devices

Description: Triple Skew-Compensating Video Delay Line with Analog and Digital Control

Download AD8120ACPZ-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

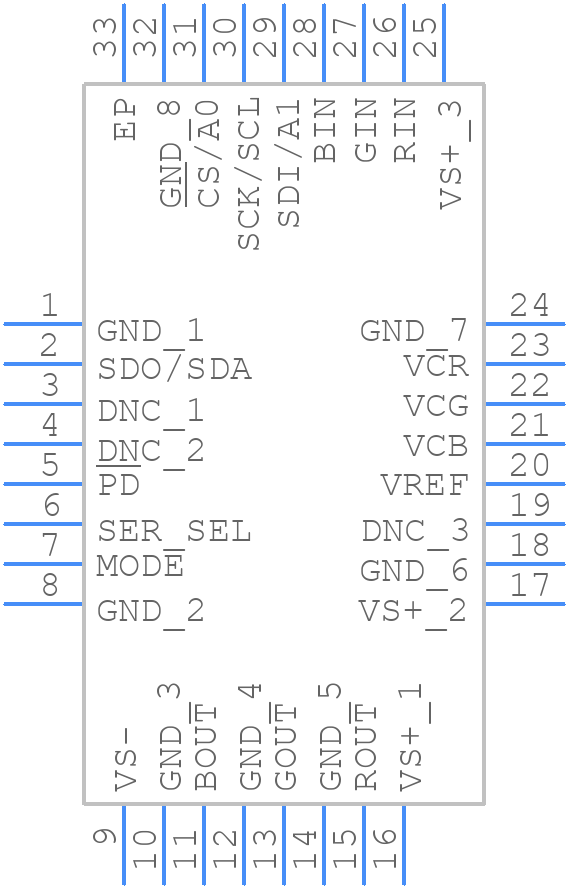

AD8120ACPZ-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD8120ACPZ-R7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-32-4 (LFCSP)_-
click to zoom
3D Models
AD8120ACPZ-R7 - Analog Devices - 3D model - Quad Flat No-Lead - CP-32-4 (LFCSP)_-
click to zoom

AD8120ACPZ-R7 Details

  • Manufacturer Part Number:

    AD8120ACPZ-R7

  • Source Url Status Check Date:

    2013-05-01 14:56:23.635

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    5 X 5 MM, ROHS COMPLIANT, MO-220VHHD-2, LFCSP-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    CP-32-4

  • Country Of Origin:

    Singapore

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    S-XQCC-N32

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Neg Supply Voltage-Max (Vsup):

    -5.5 V

  • Neg Supply Voltage-Min (Vsup):

    -4.5 V

  • Neg Supply Voltage-Nom (Vsup):

    -5 V

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

AD8120ACPZ-R7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD8120 involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated analog ground plane is recommended.
  • The gain resistor (Rg) value depends on the desired gain and the input impedance of the device. A higher Rg value results in higher gain, but also increases the noise gain. A good starting point is to use the recommended Rg value in the datasheet and adjust it based on the specific application requirements.
  • The AD8120 can handle input voltages up to ±10V, but the maximum differential input voltage is ±5V. Exceeding these limits can cause damage to the device or affect its performance.
  • The AD8120 has a built-in antialiasing filter, but additional filtering may be necessary depending on the application. A good approach is to use a combination of passive and active filters, such as RC filters and op-amp based filters, to remove noise and aliasing.
  • A good power supply decoupling scheme for the AD8120 involves using a combination of ceramic and electrolytic capacitors, with a total capacitance of at least 10uF, placed close to the device. This helps to reduce noise and ripple on the power supply lines.
