AD8128ACPZ-R7 - Analog Devices

Description: ANALOG DEVICES - AD8128ACPZ-R7 - Video Processor, RGB & Security Video, Video Projection & Distribution, 4.5V to 5.5V, LFCSP-8

Download AD8128ACPZ-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

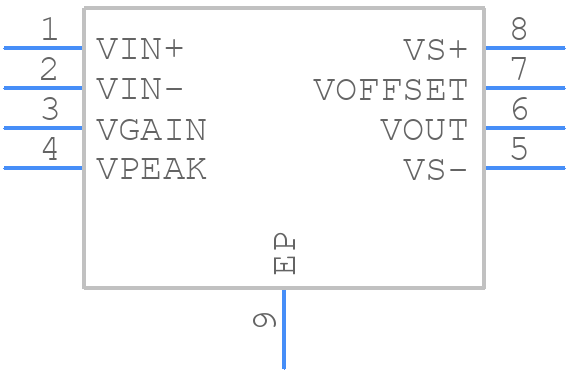

Symbol
AD8128ACPZ-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD8128ACPZ-R7 - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - CP_8-21
click to zoom
3D Models
AD8128ACPZ-R7 - Analog Devices - 3D model - Small Outline No-lead - CP_8-21
click to zoom

AD8128ACPZ-R7 Details

  • Manufacturer Part Number:

    AD8128ACPZ-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SON

  • Package Description:

    3 X 3 MM, LEAD FREE, LFCSP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    CP-8-21

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    S-XDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    3

  • Neg Supply Voltage-Max (Vsup):

    -5.5 V

  • Neg Supply Voltage-Min (Vsup):

    -4.5 V

  • Neg Supply Voltage-Nom (Vsup):

    -5 V

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.9 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

AD8128ACPZ-R7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD8128 involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the power pins. A 4-layer PCB with a dedicated ground plane is recommended.
  • The gain resistor (Rg) value depends on the desired gain and the input impedance of the amplifier. A higher Rg value results in higher gain, but also increases the noise gain. A good starting point is to use the recommended Rg value in the datasheet and adjust it based on the specific application requirements.
  • The maximum input voltage of the AD8128 is ±VCC + 0.5V, where VCC is the supply voltage. However, it's recommended to keep the input voltage within the common-mode range (VCC - 1.5V to VCC + 0.5V) for optimal performance.
  • Yes, the AD8128 can be used as a single-ended amplifier by tying the inverting input to ground and applying the input signal to the non-inverting input. However, this configuration may compromise the noise performance and common-mode rejection ratio (CMRR).
  • The AD8128 has a built-in low-pass filter that can be used to filter out high-frequency noise. Additionally, external filters such as RC filters or ferrite beads can be used to further reduce noise. The filter design depends on the specific noise frequency and amplitude.
