AD8139ACPZ-REEL - Analog Devices

Description: Differential Amplifiers High Performance Low Noise ADC Driver

Download AD8139ACPZ-REEL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

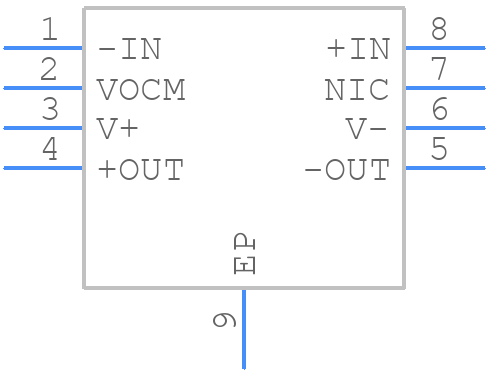

Symbol
AD8139ACPZ-REEL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD8139ACPZ-REEL - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - (CP-8-13)
click to zoom
3D Models
AD8139ACPZ-REEL - Analog Devices - 3D model - Small Outline No-lead - (CP-8-13)
click to zoom

AD8139ACPZ-REEL Details

  • Manufacturer Part Number:

    AD8139ACPZ-REEL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SON

  • Package Description:

    3 X 3 MM, ROHS COMPLIANT, LFCSP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    CP-8-13

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    8 µA

  • Bias Current-Max (IIB) @25C:

    4.2 µA

  • Common-mode Reject Ratio-Min:

    80 dB

  • Common-mode Reject Ratio-Nom:

    84 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    500 µV

  • JESD-30 Code:

    S-XDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Low-Bias:

    NO

  • Low-Offset:

    NO

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    3

  • Neg Supply Voltage Limit-Max:

    -6 V

  • Neg Supply Voltage-Nom (Vsup):

    -5 V

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.11,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.9 mm

  • Slew Rate-Nom:

    800 V/us

  • Supply Current-Max:

    25.5 mA

  • Supply Voltage Limit-Max:

    6 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Wideband:

    YES

  • Width:

    3 mm

AD8139ACPZ-REEL Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD8139 involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended. The datasheet provides a recommended layout, but it's also a good idea to consult with experienced PCB designers and perform simulations to ensure optimal performance.
  • The gain resistor values for the AD8139 depend on the desired gain and bandwidth of the amplifier. The datasheet provides a gain resistor selection table, but it's also important to consider the input impedance, output impedance, and noise requirements of your specific application. You may need to perform calculations and simulations to determine the optimal gain resistor values.
  • The AD8139 has an operating temperature range of -40°C to +125°C, but the device's performance may degrade at extreme temperatures. It's essential to consider the temperature range of your application and ensure that the device is operated within its recommended specifications.
  • To ensure EMI compliance with the AD8139, it's essential to follow proper PCB layout and design practices, such as using a solid ground plane, keeping traces short, and using shielding and filtering components. You should also consider the device's radiation patterns and take steps to minimize emissions. Consult with experienced EMI engineers and perform testing to ensure compliance with relevant standards.
  • The recommended power-up sequence for the AD8139 is to apply the power supplies (VCC and VEE) simultaneously, followed by the input signals. This helps to prevent latch-up and ensures proper device operation. It's also essential to ensure that the power supplies are stable and within the recommended voltage range before applying input signals.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD8139ACPZ-REEL Overview

Use the download button to access the AD8139ACPZ-REEL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD813, or try a keyword search, such as Operational Amplifiers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
