AD8145YCPZ-R7 - Analog Devices

Description: High Speed, Triple Differential Receiver with Comparators 32-Lead Lead Frame Chip Scale Package 4.5V ~ 24V, −40°C to +105°C

Download AD8145YCPZ-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

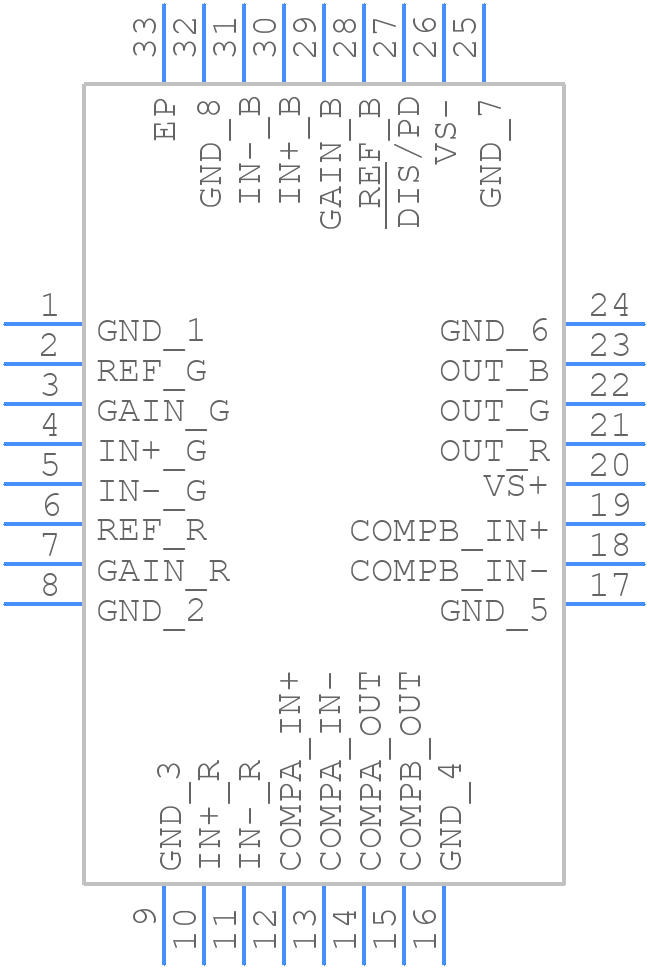

AD8145YCPZ-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD8145YCPZ-R7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - (CP-32-7)
click to zoom
3D Models
AD8145YCPZ-R7 - Analog Devices - 3D model - Quad Flat No-Lead - (CP-32-7)
click to zoom

AD8145YCPZ-R7 Details

  • Manufacturer Part Number:

    AD8145YCPZ-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    5 X 5 MM, LEAD FREE, MO-220VHHD-2, LFCSP-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    CP-32-7

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Amplifier Type:

    COMPARATOR

  • Average Bias Current-Max (IIB):

    0.9 µA

  • JESD-30 Code:

    S-XQCC-N32

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Neg Supply Voltage Limit-Max:

    -6 V

  • Neg Supply Voltage-Nom (Vsup):

    -5 V

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR, 7 INCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Response Time-Nom:

    6 ns

  • Seated Height-Max:

    1 mm

  • Supply Voltage Limit-Max:

    6 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    5 mm

AD8145YCPZ-R7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD8145YCPZ-R7 involves keeping the input and output traces separate, using a solid ground plane, and placing the device close to the signal source. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure proper biasing, connect the VCC pin to a 5V power supply, and the GND pin to a solid ground plane. The input common-mode voltage should be set to VCC/2, and the output should be terminated with a 1kΩ resistor to GND. Additionally, decouple the power supply with a 10uF capacitor.
  • The AD8145YCPZ-R7 can handle input voltages up to 6V peak-to-peak without damage. However, it's recommended to limit the input voltage to 5V peak-to-peak to ensure optimal performance and prevent distortion.
  • To filter out high-frequency noise, add a low-pass filter with a cutoff frequency of around 100kHz to 1MHz, depending on the specific application requirements. A simple RC filter with a 1kΩ resistor and a 10nF capacitor can be effective.
  • The recommended operating temperature range for the AD8145YCPZ-R7 is -40°C to 125°C. However, the device can operate up to 150°C with reduced performance and reliability.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD8145YCPZ-R7 Overview

Use the download button to access the AD8145YCPZ-R7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD814, or try a keyword search, such as Comparators
