- Part Number AD8146ACPZ-RL
- Manufacturer Analog Devices
- Pin Count 25
- Part Category Integrated Circuit
- Package Category Quad Flat No-Lead
- Footprint Name Quad Flat No-Lead - (CP-24-10)LFCSP-
- Released Date Jan 11, 2017
- Last Modified Date Nov 15, 2024 1:35 PM UTC
- Pinout / Pin List Click Here (Member Only)
AD8146ACPZ-RL Details
-
Manufacturer Part Number:
AD8146ACPZ-RL
-
Brand Name:
Analog Devices Inc
-
Pbfree Code:
No
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Package Description:
LFCSP-24
-
Pin Count:
24
-
Manufacturer Package Code:
CP-24-14
-
Country Of Origin:
Philippines
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.01
-
Manufacturer:
Analog Devices Inc
AD8146ACPZ-RL Frequently Asked Questions (FAQs)
-
A good PCB layout for the AD8146ACPZ-RL involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended. Additionally, the datasheet provides a recommended layout and land pattern that should be followed.
-
The AD8146ACPZ-RL requires a dual supply voltage of ±5V to ±15V. Ensure that the voltage supplies are well-regulated and decoupled with 0.1μF and 10μF capacitors. The device also requires a bias voltage of 1.35V to 3.6V on the VREF pin, which can be generated using a voltage divider or a voltage reference IC.
-
The AD8146ACPZ-RL can handle input voltages up to ±10V, but the device is not designed to handle high-voltage transients. If the input voltage exceeds the maximum rating, it may cause damage to the device. It is recommended to use input protection circuits, such as voltage clamps or resistors, to limit the input voltage.
-
Common issues with the AD8146ACPZ-RL can be caused by poor PCB layout, inadequate decoupling, or incorrect biasing. To troubleshoot, check the PCB layout and ensure that it follows the recommended layout and land pattern. Verify that the voltage supplies are well-regulated and decoupled. Also, check the bias voltage on the VREF pin and ensure it is within the recommended range. If the issue persists, consult the datasheet and application notes for further guidance.
-
While the AD8146ACPZ-RL is designed for dual-supply operation, it can be used in a single-supply application with some limitations. The device can operate from a single supply voltage of 5V to 15V, but the input common-mode range will be limited. Additionally, the output voltage swing will be reduced, and the device may not be able to drive heavy loads. Consult the datasheet and application notes for further guidance on single-supply operation.
Trust Checks
Community Provided
System Verified
Community Approved
AD8146ACPZ-RL Overview

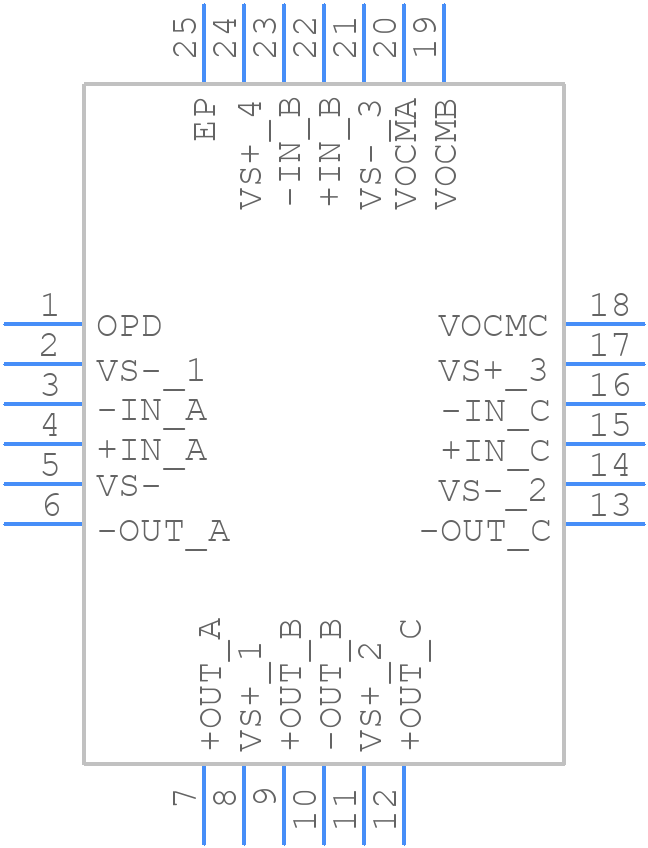

Use the download button to access the AD8146ACPZ-RL schematic symbol, PCB footprint, and 3D model.
