AD8147ACPZ-R2 - Analog Devices

Description: Analog Devices AD8147ACPZ-R2, Differential Amplifier 780MHz 3-channel 24-Pin LFCSP

Download AD8147ACPZ-R2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

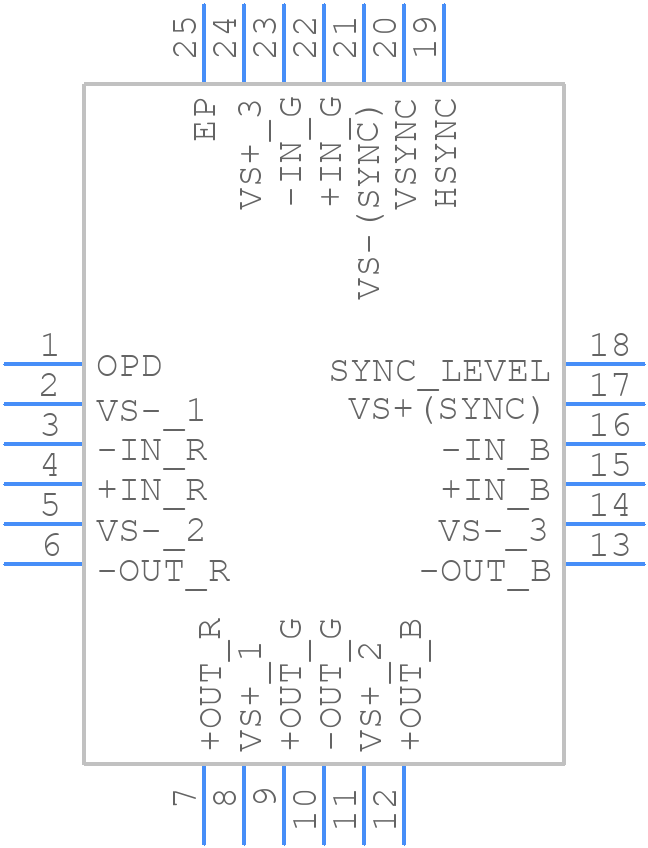

Symbol
AD8147ACPZ-R2 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD8147ACPZ-R2 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-24-10
click to zoom
3D Models
AD8147ACPZ-R2 - Analog Devices - 3D model - Quad Flat No-Lead - CP-24-10
click to zoom

AD8147ACPZ-R2 Details

  • Manufacturer Part Number:

    AD8147ACPZ-R2

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    LFCSP-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    CP-24-14

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Frequency Compensation:

    YES

  • JESD-30 Code:

    S-XQCC-N24

  • Length:

    4 mm

  • Low-Bias:

    NO

  • Low-Offset:

    NO

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    3

  • Neg Supply Voltage Limit-Max:

    -5.5 V

  • Neg Supply Voltage-Nom (Vsup):

    -5 V

  • Number of Functions:

    3

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Seated Height-Max:

    0.8 mm

  • Slew Rate-Nom:

    1000 V/us

  • Supply Current-Max:

    55.5 mA

  • Supply Voltage Limit-Max:

    5.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Wideband:

    NO

  • Width:

    4 mm

AD8147ACPZ-R2 Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD8147ACPZ-R2 involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended. Additionally, the datasheet provides a recommended layout and land pattern that should be followed.
  • To ensure stability, the AD8147ACPZ-R2 requires a minimum gain of 10 dB and a maximum capacitive load of 10 nF. Additionally, the device should be operated within its recommended supply voltage range, and the input and output impedances should be matched. It's also important to follow the recommended PCB layout and decoupling guidelines to minimize parasitic effects.
  • The AD8147ACPZ-R2 has an operating temperature range of -40°C to +125°C. However, the device's performance may degrade at extreme temperatures, and the user should consult the datasheet for temperature-related specifications and limitations.
  • The AD8147ACPZ-R2 is a commercial-grade device, but Analog Devices Inc offers a range of high-reliability and aerospace-grade versions of the device, such as the AD8147ARSZ-R2, which is qualified to MIL-PRF-38535 standards. Users should consult with Analog Devices Inc for more information on high-reliability and aerospace-grade options.
  • To troubleshoot common issues with the AD8147ACPZ-R2, users should first consult the datasheet and application notes for guidance. Common issues can often be resolved by checking the PCB layout, decoupling, and input/output impedance matching. Users can also contact Analog Devices Inc's technical support team for assistance with troubleshooting and debugging.
