- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for AD8150ASTZ
- Part Number AD8150ASTZ
- Manufacturer Analog Devices
- Pin Count 184
- Part Category Integrated Circuit
- Package Category Quad Flat Packages

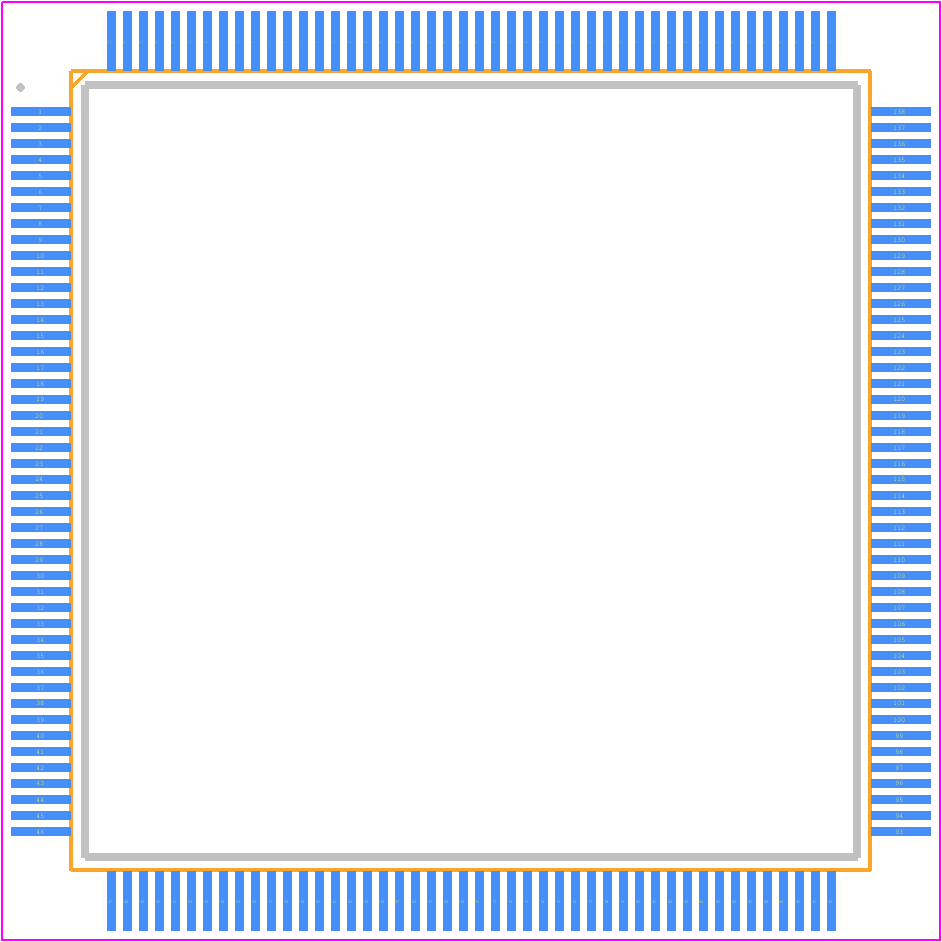

- Footprint Name Quad Flat Packages - (ST-184)
- Released Date Jan 10, 2017
- Last Modified Date Nov 15, 2024 1:35 PM UTC
- Pinout / Pin List Click Here (Member Only)
AD8150ASTZ Details
-
Manufacturer Part Number:
AD8150ASTZ
-
Brand Name:
Analog Devices Inc
-
Pbfree Code:
No
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
Part Package Code:
QFP
-
Package Description:
20 X 20 MM, PLASTIC, LQFP-184
-
Pin Count:
184
-
Manufacturer Package Code:
ST-184
-
HTS Code:
8542.39.00.01
-
Manufacturer:
Analog Devices Inc
AD8150ASTZ Frequently Asked Questions (FAQs)
-
A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the analog and digital grounds separate and connect them at a single point. Use a common mode choke or ferrite bead to filter the power supply lines.
-
Use a low-ESR capacitor (e.g., 10uF) between VCC and GND, and a smaller capacitor (e.g., 100nF) between AVCC and AGND. Add a 10uF capacitor between the analog and digital power pins. Ensure the power supply is clean and regulated.
-
The AD8150ASTZ can support data rates up to 1.5 Gbps, but the actual data rate depends on the specific application, PCB layout, and signal integrity.
-
Use the AD8150ASTZ evaluation board and the accompanying software to configure the device for your specific application. The software provides a graphical user interface to set the device's registers and configure the device for various modes of operation.
-
The AD8150ASTZ has a maximum junction temperature of 150°C. Ensure good airflow around the device, and consider using a heat sink or thermal pad to dissipate heat. Avoid overheating, as it can affect the device's reliability and performance.
Trust Checks
System Verified
AD8150ASTZ Overview
Use the download button to access the AD8150ASTZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD815,
or try a keyword search, such as Telecom Switching Circuits
