AD8151ASTZ - Analog Devices

Description: AD8151ASTZ, Crosspoint Switch, 33 x 17, 184-Pin LQFP

Download AD8151ASTZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
AD8151ASTZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints

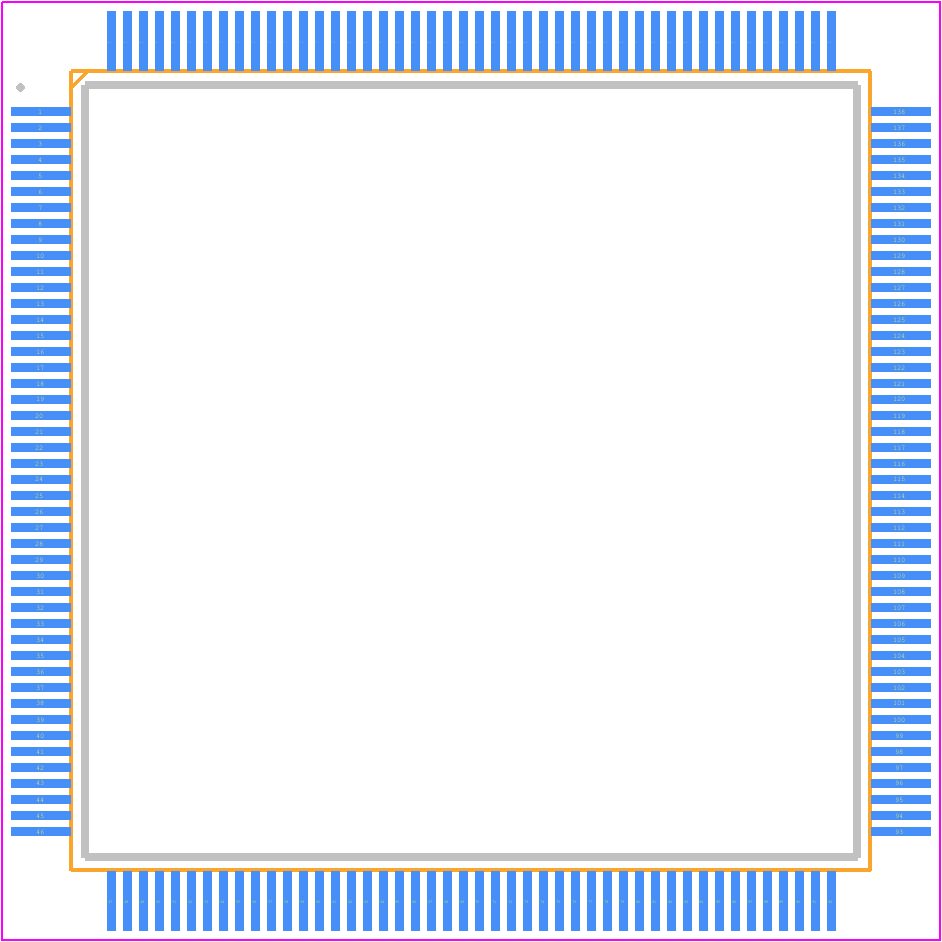

AD8151ASTZ - Analog Devices PCB footprint - Quad Flat Packages - Quad Flat Packages - (ST-184)
click to zoom
3D Models
AD8151ASTZ - Analog Devices - 3D model - Quad Flat Packages - (ST-184)
click to zoom

AD8151ASTZ Details

  • Manufacturer Part Number:

    AD8151ASTZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QFP

  • Package Description:

    20 X 20 MM, PLASTIC, LQFP-184

  • Pin Count:

    184

  • Manufacturer Package Code:

    ST-184

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Additional Feature:

    OPERATES AT -3 TO -5.25 IN ECL COMPATIBLE INPUT AND OUTPUT LEVEL

  • Boundary Scan:

    NO

  • External Data Bus Width:

    7

  • JESD-30 Code:

    S-PQFP-G184

  • JESD-609 Code:

    e3

  • Length:

    20 mm

  • Low Power Mode:

    NO

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    184

  • Operating Temperature-Max:

    85 °C

  • Output Data Bus Width:

    17

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFQFP

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.6 mm

  • Supply Voltage-Max:

    5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Width:

    20 mm

  • uPs/uCs/Peripheral ICs Type:

    DSP PERIPHERAL, CROSSBAR SWITCH

AD8151ASTZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD8151ASTZ involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • The differential outputs of the AD8151ASTZ should be terminated with a 100 ohm differential resistor to match the impedance of the transmission line. This ensures maximum signal integrity and minimizes reflections.
  • The maximum cable length that can be driven by the AD8151ASTZ depends on the frequency of the signal and the type of cable used. As a general rule, the device can drive up to 10 meters of cable at frequencies up to 100 MHz, but this can be extended to 20 meters or more with the use of repeaters or active cables.
  • The AD8151ASTZ can be configured for a specific data rate by setting the appropriate values for the clock frequency, data format, and encoding scheme using the device's control pins and registers. The datasheet provides detailed information on how to configure the device for different data rates.
  • The power consumption of the AD8151ASTZ depends on the operating frequency, data rate, and output load. The device typically consumes around 150 mA at 3.3V supply voltage. Power consumption can be minimized by reducing the operating frequency, using a lower supply voltage, and optimizing the output load.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD8151ASTZ Overview

Use the download button to access the AD8151ASTZ schematic symbol, PCB footprint, and 3D model.
