AD8152JBPZ - Analog Devices

Description: Analog Devices AD8152JBPZ, Crosspoint Switch 34 x 34

Download AD8152JBPZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
AD8152JBPZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints

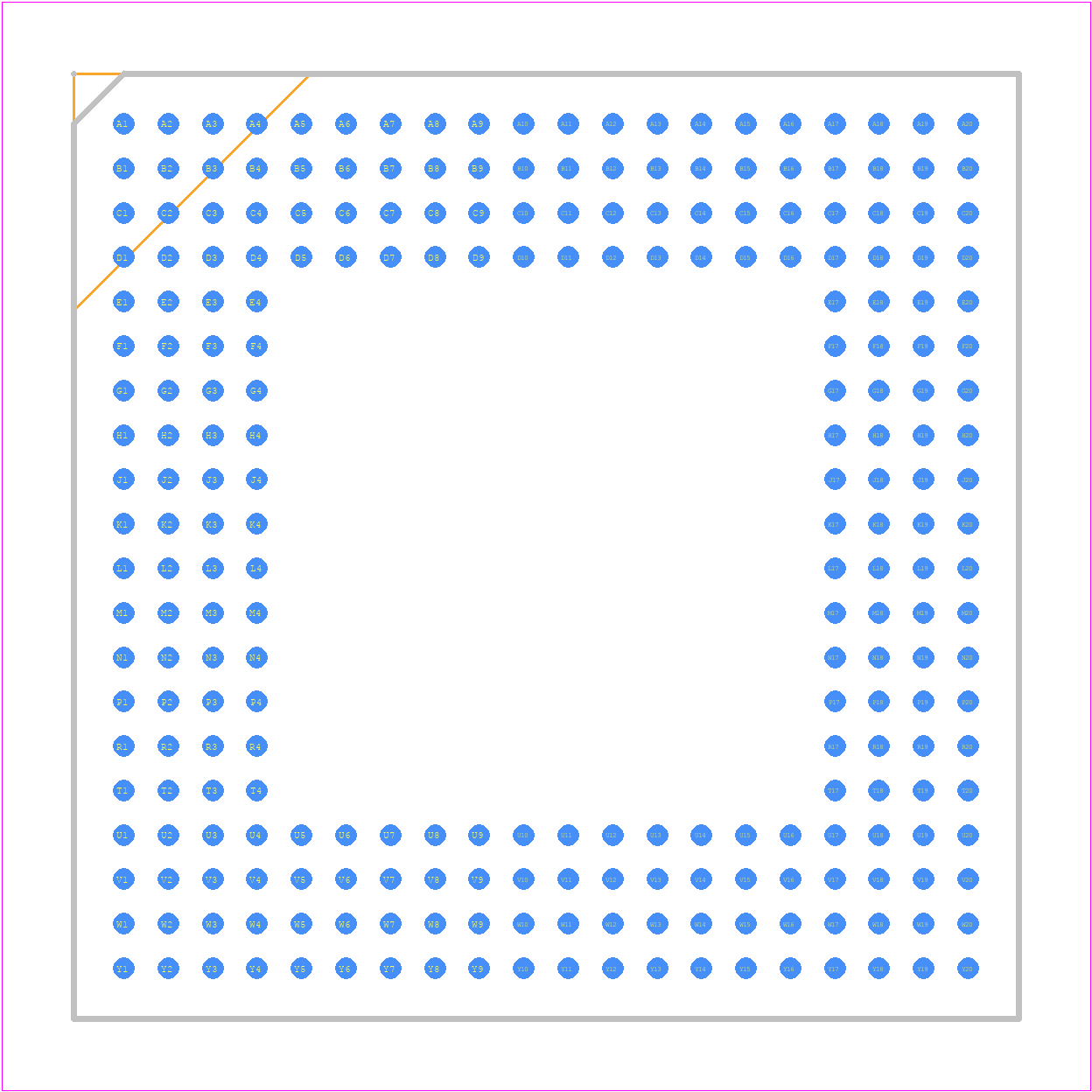

AD8152JBPZ - Analog Devices PCB footprint - BGA - BGA - BP-256-3
click to zoom
3D Models
AD8152JBPZ - Analog Devices - 3D model - BGA - BP-256-3
click to zoom

AD8152JBPZ Details

  • Manufacturer Part Number:

    AD8152JBPZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    BGA

  • Package Description:

    27 X 27 MM, 1.27 MM PITCH, PLASTIC, MO-192BAL-2, SBGA-256

  • Pin Count:

    256

  • Manufacturer Package Code:

    BP-256-3

  • Country Of Origin:

    Philippines

  • ECCN Code:

    5A991.B

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    CROSS POINT SWITCH

  • JESD-30 Code:

    S-PBGA-B256

  • JESD-609 Code:

    e1

  • Length:

    27 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    34

  • Number of Functions:

    1

  • Number of Terminals:

    256

  • On-state Resistance-Max (Ron):

    57 Ω

  • Operating Temperature-Max:

    85 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LBGA

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, LOW PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.7 mm

  • Supply Voltage-Max (Vsup):

    3.63 V

  • Supply Voltage-Min (Vsup):

    2.25 V

  • Supply Voltage-Nom (Vsup):

    2.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    27 mm

AD8152JBPZ Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the analog and digital grounds separate and connect them at a single point. Use short, direct traces for the input and output signals, and avoid crossing signal lines.
  • Ensure good airflow around the device, and consider using a heat sink if the device is expected to operate in high-temperature environments. Also, follow proper thermal design and layout guidelines to minimize thermal resistance.
  • Power up the device in the following sequence: VCC, AVCC, and then DVCC. Ensure that the power supplies are stable and within the recommended voltage range before applying signals to the device.
  • Use a shielded enclosure, keep the device away from high-frequency sources, and use EMI filters or chokes on the input and output lines. Also, ensure good grounding and decoupling of the device.
  • Use a low-impedance source, such as a voltage-controlled current source, to drive the input signals. Ensure the input signals are within the recommended voltage range and have a sufficient slew rate.
