AD8156ABCZ - Analog Devices

Description: Analog Devices AD8156ABCZ, Crosspoint Switch 4 x 4 Backplanes, Fibre Optic Network Switching, Gigabit Ethernet 3.3 V,

Download AD8156ABCZ Model

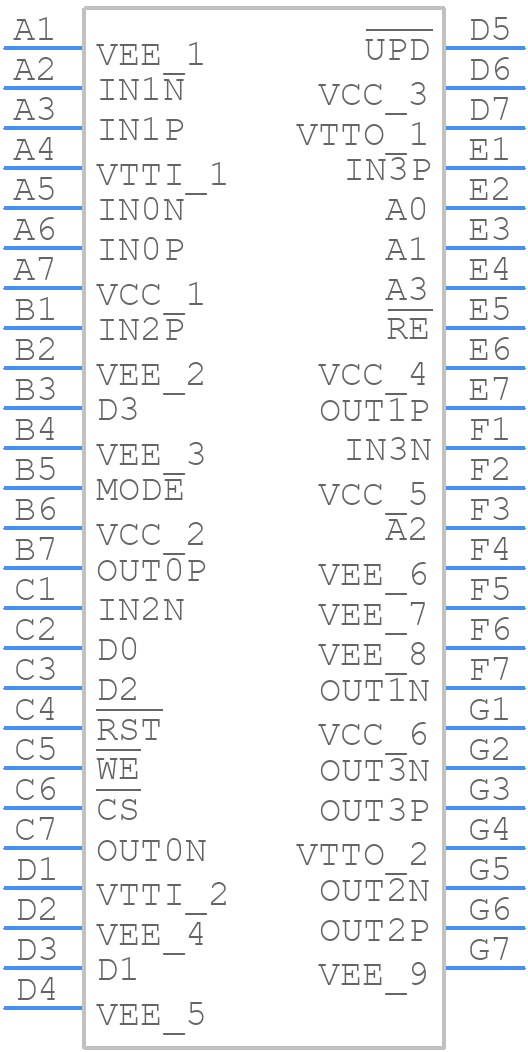

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
AD8156ABCZ - Analog Devices PCB footprint - BGA - BGA - BC-49-3
click to zoom
3D Models
AD8156ABCZ - Analog Devices  - 3D model - BGA - BC-49-3
click to zoom

AD8156ABCZ Details

  • Manufacturer Part Number:

    AD8156ABCZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    BGA

  • Package Description:

    8 X 8 MM, 1 MM PITCH, ROHS COMPLIANT, MO-192ABB-1, BGA-49

  • Pin Count:

    49

  • Manufacturer Package Code:

    BC-49-3

  • ECCN Code:

    5A991.B

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Analog IC - Other Type:

    CROSS POINT SWITCH

  • JESD-30 Code:

    S-PBGA-B49

  • JESD-609 Code:

    e1

  • Length:

    8 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    49

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    BGA

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.85 mm

  • Supply Current-Max (Isup):

    141 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    20 ns

  • Switch-on Time-Max:

    20 ns

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    TIN SILVER COPPER

  • Terminal Form:

    BALL

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    BOTTOM

  • Width:

    8 mm

AD8156ABCZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD8156ABCZ involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. A 4-layer PCB with a dedicated ground plane is recommended. Additionally, it's essential to follow the layout guidelines provided in the datasheet and application notes.
  • To optimize the performance of the AD8156ABCZ, it's essential to understand the specific requirements of your application. This includes selecting the correct input and output voltage ranges, choosing the right capacitors, and optimizing the PCB layout. Additionally, you may need to adjust the device's internal registers to achieve the desired performance. Analog Devices provides application notes and evaluation boards that can help you optimize the device's performance for your specific use case.
  • The AD8156ABCZ has a maximum junction temperature of 150°C. To ensure reliable operation, it's essential to keep the device's temperature below this limit. This can be achieved by providing adequate heat sinking, using a thermally conductive PCB material, and minimizing the power dissipation in the device. The datasheet provides thermal resistance values and power dissipation calculations to help you design a thermally efficient system.
  • Troubleshooting issues with the AD8156ABCZ involves identifying the symptoms, isolating the problem, and using the device's built-in diagnostic features. This includes checking the device's status registers, monitoring the output signals, and verifying the input signals. Analog Devices provides a troubleshooting guide and application notes that can help you identify and resolve common issues.
  • The AD8156ABCZ is a high-frequency device that can be susceptible to electromagnetic interference (EMI) and radio-frequency interference (RFI). To minimize the risk of interference, it's essential to use proper shielding, grounding, and filtering techniques. This includes using a metal shield around the device, connecting the device's grounds to a solid ground plane, and using EMI filters on the input and output signals.
