AD8170ARZ-R7 - Analog Devices

Description: Multiplexer Switch ICs SOIC 2:1 Buffered Multiplexer

Download AD8170ARZ-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

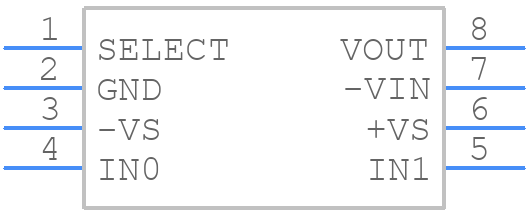

AD8170ARZ-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD8170ARZ-R7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - SO-8 (SOIC)
click to zoom

AD8170ARZ-R7 Details

  • Manufacturer Part Number:

    AD8170ARZ-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    PLASTIC, SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    R-8

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    VIDEO MULTIPLEXER

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage-Max (Vsup):

    -6 V

  • Neg Supply Voltage-Min (Vsup):

    -4 V

  • Neg Supply Voltage-Nom (Vsup):

    -5 V

  • Normal Position:

    NC

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Off-state Isolation-Nom:

    72 dB

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    COMMON OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    6 V

  • Supply Voltage-Min (Vsup):

    4 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    120 ns

  • Switch-on Time-Max:

    17 ns

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

AD8170ARZ-R7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD8170ARZ-R7 involves keeping the input and output traces short and symmetrical, using a solid ground plane, and placing the device close to the signal sources. Additionally, it's recommended to use a low-ESR capacitor for the power supply decoupling.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Also, ensure that the input and output impedances are matched, and the gain is set within the recommended range. Additionally, consider adding a small capacitor (e.g., 10nF) in parallel with the feedback resistor to improve stability.
  • The maximum power dissipation of the AD8170ARZ-R7 is 1.4W, which is calculated based on the maximum junction temperature (TJ) of 150°C and the thermal resistance (θJA) of 125°C/W. Make sure to provide adequate heat sinking and thermal management to prevent overheating.
  • The AD8170ARZ-R7 is rated for operation from -40°C to 125°C. However, the device's performance and reliability may degrade at high temperatures. If you need to operate the device in a high-temperature environment, consider using a heat sink and ensuring good airflow to prevent overheating.
  • Common issues with the AD8170ARZ-R7 include oscillations, distortion, and noise. To troubleshoot, check the PCB layout, component values, and power supply decoupling. Ensure that the input and output impedances are matched, and the gain is set within the recommended range. Also, verify that the device is operated within its recommended specifications.
