AD8174ANZ - Analog Devices

Description: AD8174ANZ, Multiplexer Single 4:1 Analogue Multiplexer/Amp, 14-Pin, PDIP, 1

Download AD8174ANZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

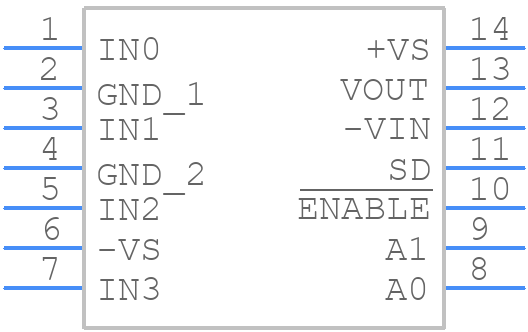

Symbol
AD8174ANZ - Analog Devices - PCB symbol
click to zoom

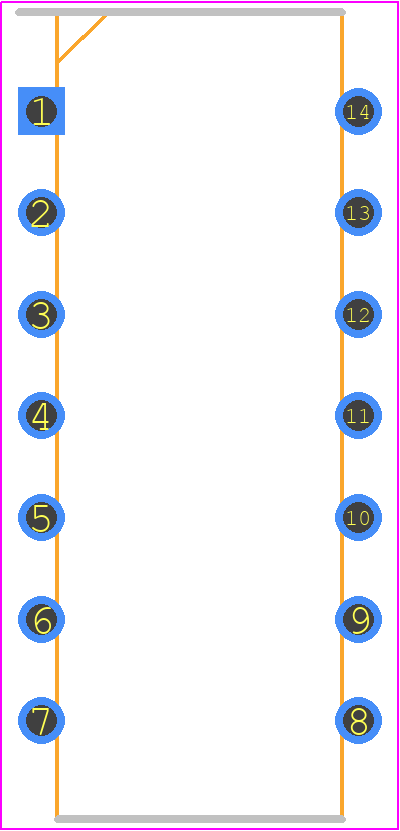

PCB Footprints
AD8174ANZ - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - N-14 _1
click to zoom
3D Models
AD8174ANZ - Analog Devices - 3D model - Dual-In-Line Packages - N-14 _1
click to zoom

AD8174ANZ Details

  • Manufacturer Part Number:

    AD8174ANZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    DIP

  • Package Description:

    PLASTIC, DIP-14

  • Pin Count:

    14

  • Manufacturer Package Code:

    N-14

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Analog IC - Other Type:

    VIDEO MULTIPLEXER

  • JESD-30 Code:

    R-PDIP-T14

  • JESD-609 Code:

    e3

  • Length:

    19.305 mm

  • Neg Supply Voltage-Max (Vsup):

    -6 V

  • Neg Supply Voltage-Min (Vsup):

    -4 V

  • Neg Supply Voltage-Nom (Vsup):

    -5 V

  • Normal Position:

    NO

  • Number of Channels:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Off-state Isolation-Nom:

    72 dB

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    COMMON OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP14,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.33 mm

  • Supply Voltage-Max (Vsup):

    6 V

  • Supply Voltage-Min (Vsup):

    4 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    NO

  • Switch-off Time-Max:

    120 ns

  • Switch-on Time-Max:

    17 ns

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

AD8174ANZ Frequently Asked Questions (FAQs)

  • For optimal performance, it is recommended to follow a star-ground layout, keep the input and output traces short and away from each other, and use a solid ground plane. Additionally, decoupling capacitors should be placed close to the power pins, and the device should be powered from a low-impedance source.
  • The AD8174ANZ has built-in ESD protection, but it is still recommended to follow proper ESD handling procedures when handling the device. This includes using an ESD wrist strap or mat, storing the device in an anti-static bag, and avoiding touching the pins or leads.
  • The maximum power dissipation of the AD8174ANZ is dependent on the ambient temperature and the thermal resistance of the package. For the SOIC package, the maximum power dissipation is approximately 670mW at 25°C ambient temperature. However, it is recommended to derate the power dissipation by 6.7mW/°C above 25°C.
  • Yes, the AD8174ANZ can be used as a unity-gain buffer. However, it is recommended to add a small capacitor (typically 10pF to 100pF) in parallel with the feedback resistor to improve stability and reduce oscillations.
  • The feedback resistors should be chosen based on the desired gain and bandwidth of the circuit. A good starting point is to use a feedback resistor value between 1kΩ and 10kΩ, and then adjust as needed to achieve the desired performance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD8174ANZ Overview

Use the download button to access the AD8174ANZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD817, or try a keyword search, such as Multiplexers or Switches
