AD8177ABPZ - Analog Devices

Description: AD8177ABPZ, Crosspoint Switch, Triple 16 x 5 500MHz Video, 676-Pin BGA

Download AD8177ABPZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
AD8177ABPZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints

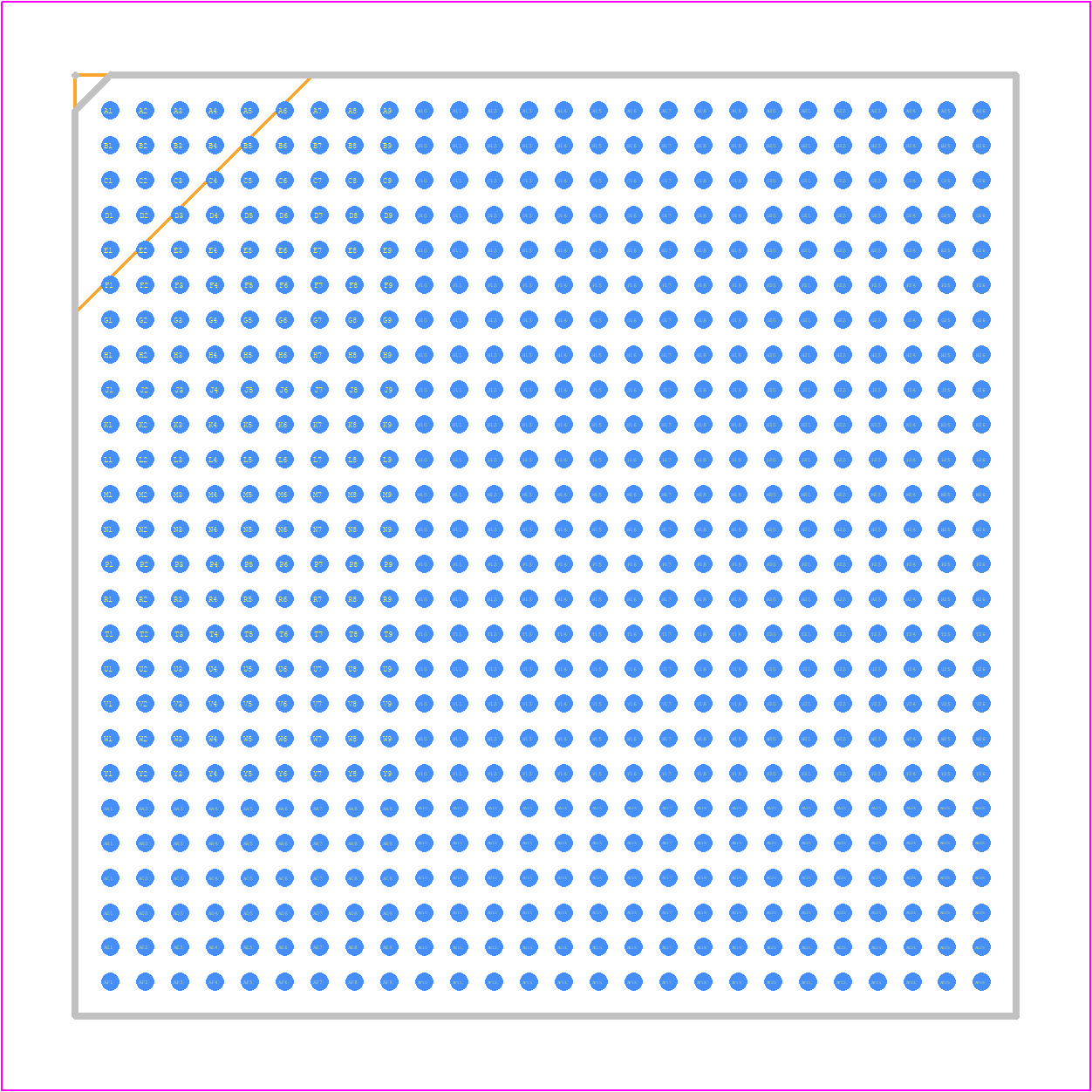

AD8177ABPZ - Analog Devices PCB footprint - BGA - BGA - B-676-1
click to zoom
3D Models
AD8177ABPZ - Analog Devices - 3D model - BGA - B-676-1
click to zoom

AD8177ABPZ Details

  • Manufacturer Part Number:

    AD8177ABPZ

  • Source Url Status Check Date:

    2013-05-01 14:56:24.088

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    BGA

  • Package Description:

    27 X 27 MM, 1 MM PITCH, ROHS COMPLIANT, PLASTIC, MS-034AAL-1, BGA-676

  • Pin Count:

    676

  • Manufacturer Package Code:

    B-676

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Additional Feature:

    ALSO OPERATE WITH 5V SINGLE SUPPLY

  • Analog IC - Other Type:

    CROSS POINT SWITCH

  • JESD-30 Code:

    S-PBGA-B676

  • JESD-609 Code:

    e1

  • Length:

    27 mm

  • Moisture Sensitivity Level:

    3

  • Neg Supply Voltage-Nom (Vsup):

    -2.5 V

  • Number of Channels:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    676

  • Off-state Isolation-Nom:

    94 dB

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    BGA

  • Package Equivalence Code:

    BGA676,26X26,40

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.43 mm

  • Supply Current-Max (Isup):

    460 mA

  • Supply Voltage-Nom (Vsup):

    2.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    TIN SILVER COPPER

  • Terminal Form:

    BALL

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    BOTTOM

  • Width:

    27 mm

AD8177ABPZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD8177ABPZ involves keeping the input and output traces separate, using a solid ground plane, and placing the device close to the input signal source. Additionally, it's recommended to use a low-ESR capacitor for the power supply decoupling and to keep the power supply traces away from the input and output signals.
  • To ensure the AD8177ABPZ is operating within its recommended operating conditions, verify that the power supply voltage is within the specified range (4.5V to 16V), the input voltage is within the common-mode range (-12V to +12V), and the output current is within the specified range (±20mA). Also, ensure that the device is operated within the recommended temperature range (-40°C to +125°C).
  • The recommended input impedance for the AD8177ABPZ is 1kΩ or higher. This ensures that the input signal is not attenuated and the device can operate within its specified bandwidth.
  • To reduce noise and distortion in the AD8177ABPZ output signal, use a low-pass filter at the output, ensure a clean power supply, and minimize the distance between the device and the load. Additionally, using a shielded cable and a low-capacitance output load can help reduce noise and distortion.
  • The AD8177ABPZ can drive a maximum capacitive load of 100pF. Exceeding this limit may cause instability or oscillations in the output signal.
