AD8184ANZ - Analog Devices

Description: Analog Devices AD8184ANZ, Multiplexer Single 4 x 1, 14-Pin PDIP

Download AD8184ANZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

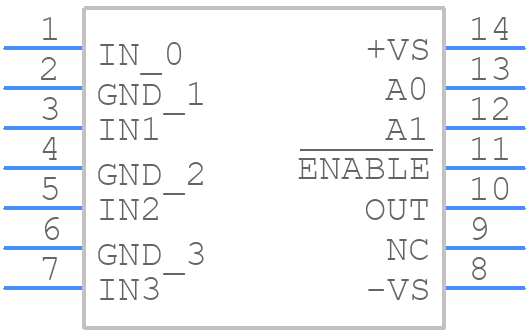

AD8184ANZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints

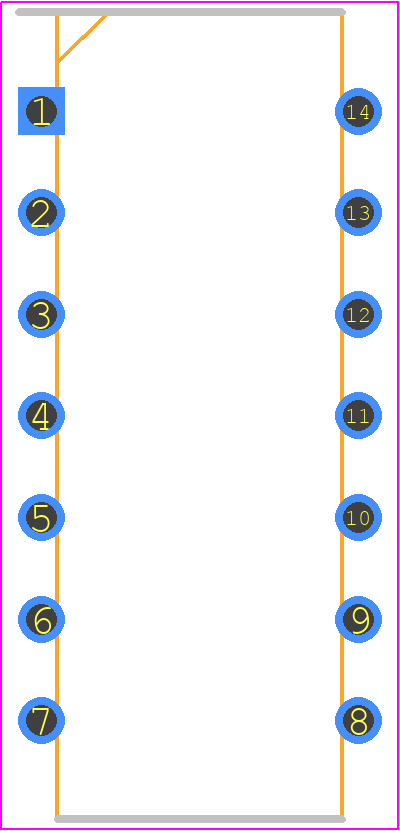

AD8184ANZ - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - N-14 _1
click to zoom
3D Models
AD8184ANZ - Analog Devices - 3D model - Dual-In-Line Packages - N-14 _1
click to zoom

AD8184ANZ Details

  • Manufacturer Part Number:

    AD8184ANZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DIP

  • Package Description:

    PLASTIC, DIP-14

  • Pin Count:

    14

  • Manufacturer Package Code:

    N-14

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    SINGLE-ENDED MULTIPLEXER

  • JESD-30 Code:

    R-PDIP-T14

  • JESD-609 Code:

    e3

  • Length:

    19.305 mm

  • Neg Supply Voltage-Max (Vsup):

    -5.5 V

  • Neg Supply Voltage-Min (Vsup):

    -4.5 V

  • Neg Supply Voltage-Nom (Vsup):

    -5 V

  • Number of Channels:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Off-state Isolation-Nom:

    115 dB

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP14,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.33 mm

  • Supply Current-Max (Isup):

    5.7 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    NO

  • Switch-off Time-Max:

    22 ns

  • Switch-on Time-Max:

    12 ns

  • Switching:

    MAKE-BEFORE-BREAK

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

AD8184ANZ Frequently Asked Questions (FAQs)

  • The AD8184ANZ is a high-frequency device, and proper layout and placement are crucial for optimal performance. It is recommended to follow the layout guidelines provided in the datasheet, including keeping the input and output traces short and away from each other, using a solid ground plane, and placing the device close to the power supply decoupling capacitors.
  • The gain and bandwidth of the AD8184ANZ can be optimized by selecting the appropriate gain resistor values and adjusting the compensation capacitor values. The datasheet provides a gain-bandwidth product graph that can be used to determine the optimal gain and bandwidth settings for a specific application.
  • The maximum input voltage that the AD8184ANZ can handle is ±10V, but it is recommended to limit the input voltage to ±5V to ensure optimal performance and prevent damage to the device.
  • Noise and distortion in the AD8184ANZ can be reduced by using a low-noise power supply, adding input and output filtering, and using a high-quality printed circuit board (PCB) with a solid ground plane. Additionally, the device's noise figure can be improved by using a low-noise amplifier in the input stage.
  • The power consumption of the AD8184ANZ depends on the supply voltage and the operating frequency. The typical power consumption is around 30mA at a supply voltage of ±5V and an operating frequency of 100MHz.
