A good PCB layout for the AD8194ACPZ involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure proper biasing, connect the VCC pin to a stable 5V power supply, and the GND pin to a solid ground plane. Also, make sure to decouple the power supply with a 0.1uF capacitor and a 10uF capacitor in parallel, placed close to the device.
The AD8194ACPZ can handle input voltages up to 6V without damage. However, it's recommended to keep the input voltage within the specified range of 0V to 5V to ensure optimal performance and prevent damage.
To troubleshoot issues with the AD8194ACPZ, start by checking the power supply voltage and ensuring it's within the specified range. Then, verify that the input voltage is within the specified range and that the device is properly biased. Use an oscilloscope to check for oscillations or incorrect output voltages, and check the PCB layout for any issues.
The AD8194ACPZ is rated for operation up to 125°C. However, the device's performance may degrade at high temperatures, and the maximum junction temperature should not exceed 150°C. It's recommended to derate the device's performance at high temperatures and ensure proper heat sinking.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AD8194ACPZ Overview

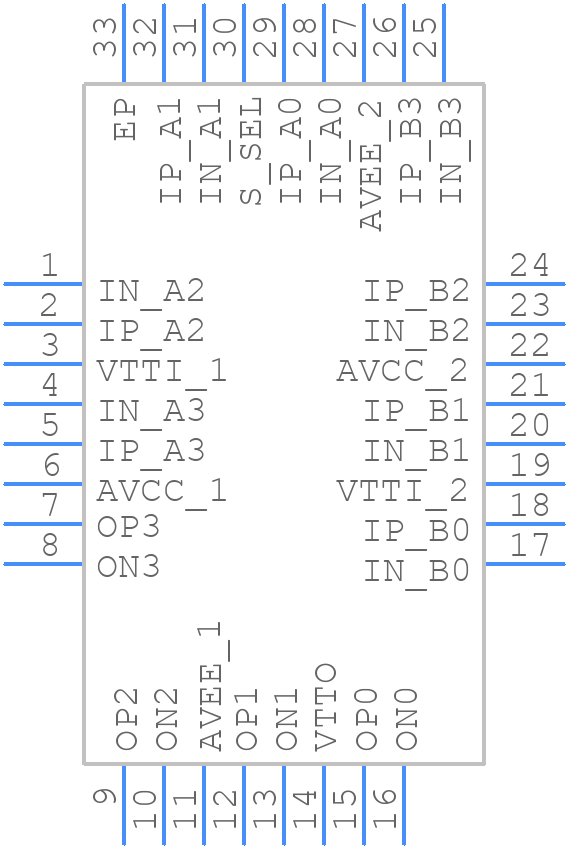

Use the download button to access the AD8194ACPZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD819,
or try a keyword search, such as Multiplexers or Switches
