AD8205WHRZ - Analog Devices

Description: SP Amp DIFF AMP Single 5.5V Automotive 8-Pin SOIC N Tube

Download AD8205WHRZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

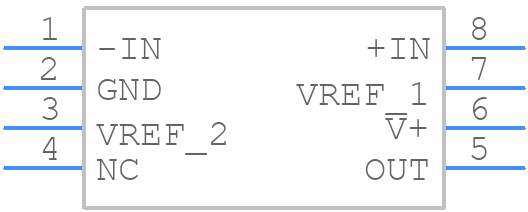

AD8205WHRZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD8205WHRZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - R-8 (SOIC)
click to zoom
3D Models
AD8205WHRZ - Analog Devices - 3D model - Small Outline Packages - R-8 (SOIC)
click to zoom

AD8205WHRZ Details

  • Manufacturer Part Number:

    AD8205WHRZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    R-8

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Common-mode Reject Ratio-Min:

    76 dB

  • Common-mode Reject Ratio-Nom:

    80 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    4500 µV

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Low-Offset:

    NO

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.24

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.75 mm

  • Slew Rate-Nom:

    0.5 V/us

  • Supply Current-Max:

    2.2 mA

  • Supply Voltage Limit-Max:

    12.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

AD8205WHRZ Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the AD8205WHRZ involves keeping the input and output traces as short as possible, using a solid ground plane, and placing the device close to the analog-to-digital converter (ADC) or other sensitive components. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog ground plane to minimize noise and interference.
  • To optimize the performance of the AD8205WHRZ in a noisy environment, it's recommended to use a low-pass filter at the input, add a ferrite bead or a common-mode choke to the power supply lines, and use a shielded enclosure to reduce electromagnetic interference (EMI). Additionally, consider using a differential amplifier configuration to reject common-mode noise.
  • The maximum operating temperature range for the AD8205WHRZ is -40°C to +125°C. However, it's recommended to operate the device within the specified temperature range of -40°C to +85°C for optimal performance and reliability.
  • Yes, the AD8205WHRZ can be used with a single-supply voltage. However, it's recommended to use a dual-supply voltage configuration for optimal performance and to ensure that the output voltage swing is within the specified range.
  • To troubleshoot common issues with the AD8205WHRZ, such as oscillation or instability, check the power supply voltage and decoupling, ensure that the input and output traces are properly terminated, and verify that the device is properly biased. Additionally, check for any layout or routing issues that may be causing the problem.
