AD820ARMZ-RL - Analog Devices

Description: Single-Supply, Rail-to-Rail, Low Power, FET Input Op Amp

Download AD820ARMZ-RL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

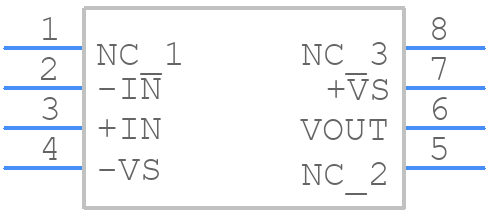

Symbol
AD820ARMZ-RL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD820ARMZ-RL - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - (RM-8)
click to zoom
3D Models
AD820ARMZ-RL - Analog Devices - 3D model - Small Outline Packages - (RM-8)
click to zoom

AD820ARMZ-RL Details

  • Manufacturer Part Number:

    AD820ARMZ-RL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    ROHS COMPLIANT, MO-187AA, MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    RM-8

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.005 µA

  • Bias Current-Max (IIB) @25C:

    0.000025 µA

  • Common-mode Reject Ratio-Min:

    66 dB

  • Common-mode Reject Ratio-Nom:

    80 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    1500 µV

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Low-Bias:

    YES

  • Low-Offset:

    NO

  • Micropower:

    YES

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage Limit-Max:

    -18 V

  • Neg Supply Voltage-Nom (Vsup):

    -5 V

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Slew Rate-Nom:

    3 V/us

  • Supply Current-Max:

    0.8 mA

  • Supply Voltage Limit-Max:

    18 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    1900

  • Voltage Gain-Min:

    10000

  • Wideband:

    NO

  • Width:

    3 mm

AD820ARMZ-RL Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the AD820ARMZ-RL involves keeping the input and output traces as short as possible, using a ground plane to reduce noise, and placing the device close to the signal source. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog ground plane to minimize noise and interference.
  • To ensure the AD820ARMZ-RL is properly biased and configured, refer to the datasheet for the recommended biasing and configuration for your specific application. Additionally, consider consulting with an experienced analog design engineer or using simulation tools such as SPICE to verify the design.
  • The AD820ARMZ-RL has a maximum junction temperature of 150°C. To ensure it operates within its specified temperature range, consider the thermal resistance of the package, the PCB layout, and the ambient temperature. Use thermal simulation tools or consult with a thermal expert to ensure the device operates within its specified temperature range.
  • To troubleshoot common issues with the AD820ARMZ-RL, start by verifying the power supply and biasing, then check the input and output signals for noise or distortion. Consult the datasheet and application notes for troubleshooting guides, and consider using simulation tools or consulting with an experienced analog design engineer.
  • The AD820ARMZ-RL has a human body model (HBM) ESD rating of 1.5 kV and a charged device model (CDM) rating of 500 V. To prevent ESD damage, handle the device with ESD-safe materials, use ESD-safe workstations, and follow proper handling and storage procedures.
