- Part Number AD8212YRMZ
- Manufacturer Analog Devices
- Pin Count 8
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - RM-8
- Released Date Nov 27, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
AD8212YRMZ Details
-
Manufacturer Part Number:
AD8212YRMZ
-
Brand Name:
Analog Devices Inc
-
Pbfree Code:
No
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Part Package Code:
TSSOP
-
Package Description:
ROHS COMPLIANT, MO-187AA, MSOP-8
-
Pin Count:
8
-
Manufacturer Package Code:
RM-8
-
Country Of Origin:
Philippines
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.01
AD8212YRMZ Frequently Asked Questions (FAQs)
-
A good PCB layout for the AD8212YRMZ involves keeping the input and output traces separate, using a ground plane, and placing the device close to the signal source. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog ground plane to reduce noise and electromagnetic interference (EMI).
-
The gain resistor (Rg) value depends on the desired gain and the input signal amplitude. A higher Rg value results in higher gain, but also increases the noise gain. A good starting point is to use the recommended Rg value from the datasheet, and then adjust it based on the specific application requirements.
-
The AD8212YRMZ can handle input voltages up to ±25V without damage. However, the recommended input voltage range is ±10V to ensure optimal performance and linearity.
-
The AD8212YRMZ has a built-in low-pass filter that can be used to filter out high-frequency noise. Additionally, external filtering can be used, such as a simple RC filter or a more complex active filter, depending on the specific application requirements.
-
The typical settling time for the AD8212YRMZ is around 1.5μs. This means that the device takes approximately 1.5μs to settle to its final output value after a step change in the input signal. This settling time should be considered when designing the application, especially in high-speed or high-accuracy applications.
Trust Checks
Community Provided
System Verified
Community Approved
AD8212YRMZ Overview

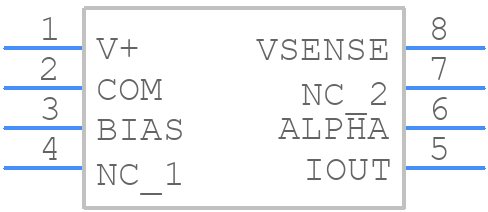

Use the download button to access the AD8212YRMZ schematic symbol, PCB footprint, and 3D model.
