AD8213WYRMZ-R7 - Analog Devices

Description: Dual, High Voltage Current Shunt Monitor

Download AD8213WYRMZ-R7 Model

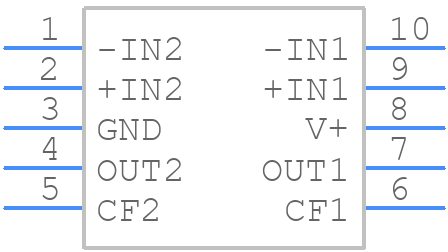

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
AD8213WYRMZ-R7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 0-Lead Mini Small Outline Package [MSOP] (RM-10)
click to zoom
3D Models
AD8213WYRMZ-R7 - Analog Devices  - 3D model - Small Outline Packages - 0-Lead Mini Small Outline Package [MSOP] (RM-10)
click to zoom

AD8213WYRMZ-R7 Details

  • Manufacturer Part Number:

    AD8213WYRMZ-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    MSOP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    RM-10

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Bandwidth (3dB)-Nom:

    0.5 MHz

  • Common-mode Reject Ratio-Min:

    100 dB

  • Common-mode Reject Ratio-Nom:

    120 dB

  • Frequency Compensation:

    NO

  • Input Offset Voltage-Max:

    2200 µV

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Low-Bias:

    NO

  • Low-Offset:

    NO

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP10,.19,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR, 7 INCH

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.1 mm

  • Slew Rate-Nom:

    4.5 V/us

  • Supply Current-Max:

    3.75 mA

  • Supply Voltage Limit-Max:

    12.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Voltage Gain-Min:

    20

  • Wideband:

    NO

  • Width:

    3 mm

AD8213WYRMZ-R7 Frequently Asked Questions (FAQs)

  • A good PCB layout is crucial for the AD8213WYRMZ-R7. Keep the input and output traces short and separate, use a solid ground plane, and avoid routing signals under the device. A 4-layer PCB with a dedicated analog ground plane is recommended.
  • To minimize EMI and RFI, use a shielded enclosure, keep the device away from high-frequency sources, and use a common-mode choke or ferrite bead on the input lines. Also, ensure good grounding and decoupling of the device.
  • The maximum allowable voltage on the input pins is ±VCC + 0.3V. Exceeding this voltage can damage the device. Use external protection diodes or voltage limiters if the input signal exceeds this range.
  • Calibration is not required for the AD8213WYRMZ-R7, as it is a ratiometric device. However, ensure that the input common-mode voltage is within the specified range, and the output voltage is properly terminated to maintain accuracy.
  • The AD8213WYRMZ-R7 has a specified operating temperature range of -40°C to +125°C. Temperature changes can affect the device's offset voltage, gain, and linearity. Ensure proper thermal management and consider temperature compensation if necessary.
