AD8218BCPZ-WP - Analog Devices

Description: Current Sense Amplifiers ZeroDrift BiDirectional Current SenseAmp

Download AD8218BCPZ-WP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

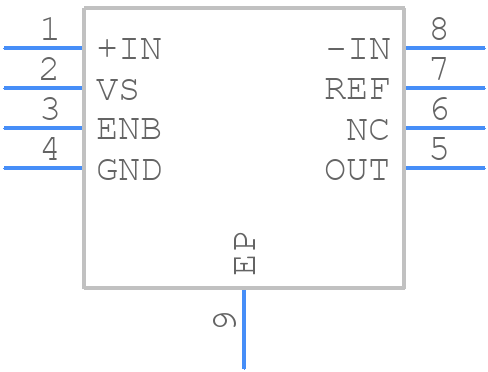

AD8218BCPZ-WP - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD8218BCPZ-WP - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - CP-8-4 (LFCSP_WD)
click to zoom
3D Models
AD8218BCPZ-WP - Analog Devices - 3D model - Small Outline No-lead - CP-8-4 (LFCSP_WD)
click to zoom

AD8218BCPZ-WP Details

  • Manufacturer Part Number:

    AD8218BCPZ-WP

  • Source Url Status Check Date:

    2013-05-01 14:56:24.668

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    CP-8-4

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Common-mode Reject Ratio-Min:

    90 dB

  • Common-mode Reject Ratio-Nom:

    110 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    300 µV

  • JESD-30 Code:

    R-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Low-Offset:

    YES

  • Micropower:

    YES

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Seated Height-Max:

    0.8 mm

  • Slew Rate-Nom:

    1 V/us

  • Supply Current-Max:

    0.8 mA

  • Supply Voltage Limit-Max:

    85 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2 mm

AD8218BCPZ-WP Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD8218BCPZ-WP involves keeping the input and output traces separate, using a solid ground plane, and placing the device close to the input signal source. Additionally, it's recommended to use a low-ESR capacitor for the power supply decoupling.
  • The AD8218BCPZ-WP is rated for operation from -40°C to 125°C. Ensure that the device is properly heatsinked, and the ambient temperature is within the specified range. Also, consider the power dissipation and thermal resistance of the device when designing the system.
  • The AD8218BCPZ-WP is a high-impedance device, so it's essential to use a low-impedance signal source and a buffer amplifier if necessary. Additionally, consider using a low-pass filter to remove high-frequency noise and ensure the input signal is within the specified range.
  • Common issues with the AD8218BCPZ-WP can be troubleshooted by checking the input signal quality, power supply voltage, and output load. Ensure that the input signal is within the specified range, the power supply is stable, and the output load is within the recommended range. Also, check for any signs of overheating or physical damage to the device.
  • To minimize EMI and RFI issues with the AD8218BCPZ-WP, use a shielded enclosure, keep the device away from high-frequency sources, and use a low-pass filter on the input signal. Additionally, ensure that the PCB layout is designed to minimize radiation and susceptibility to external interference.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD8218BCPZ-WP Overview

Use the download button to access the AD8218BCPZ-WP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD821, or try a keyword search, such as Operational Amplifiers
