AD8232ACPZ-R7 - Analog Devices

Description: ANALOG DEVICES - AD8232ACPZ-R7 - SIGNAL CONDITIONER, ECG, LFCSP-20

Download AD8232ACPZ-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

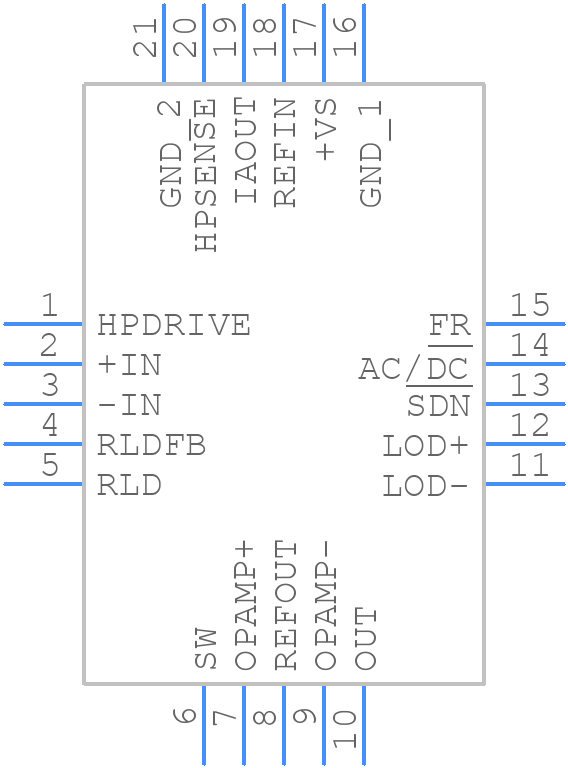

Symbol
AD8232ACPZ-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD8232ACPZ-R7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - AD8232ACPZ-R7-1
click to zoom
3D Models
AD8232ACPZ-R7 - Analog Devices - 3D model - Quad Flat No-Lead - AD8232ACPZ-R7-1
click to zoom

AD8232ACPZ-R7 Details

  • Manufacturer Part Number:

    AD8232ACPZ-R7

  • Source Url Status Check Date:

    2013-05-01 14:56:24.969

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    CP-20-8

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    S-XQCC-N20

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC20,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    3.5 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

AD8232ACPZ-R7 Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the AD8232ACPZ-R7 involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the electrodes. A 4-layer PCB with a dedicated analog ground plane is recommended.
  • Optimizing the filter settings for your specific application involves selecting the correct filter cutoff frequencies, gain, and notch filter settings based on the signal frequency range and noise characteristics of your application. You may need to experiment with different settings and evaluate their impact on your signal quality.
  • The recommended power-up sequence for the AD8232ACPZ-R7 involves powering up the analog supply (AVDD) first, followed by the digital supply (DVDD), and then enabling the device. This ensures that the analog circuitry is powered up before the digital circuitry.
  • Handling EMI and RFI in your design involves using proper shielding, grounding, and filtering techniques. You can use shielding materials, such as copper or aluminum, to enclose the device and reduce electromagnetic radiation. Additionally, using filters, such as the internal notch filter of the AD8232ACPZ-R7, can help reduce interference.
  • The recommended method for driving the LED indicators on the AD8232ACPZ-R7 involves using a current-limiting resistor in series with the LED and connecting the LED to a digital output pin. The LED should be driven with a current of 1-2 mA to ensure reliable operation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD8232ACPZ-R7 Overview

Use the download button to access the AD8232ACPZ-R7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD823, or try a keyword search, such as Other Signal Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
