AD8232ACPZ-RL - Analog Devices

Description: AFE General Purpose 1 ADC 20-Pin LFCSP EP T/R

Download AD8232ACPZ-RL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

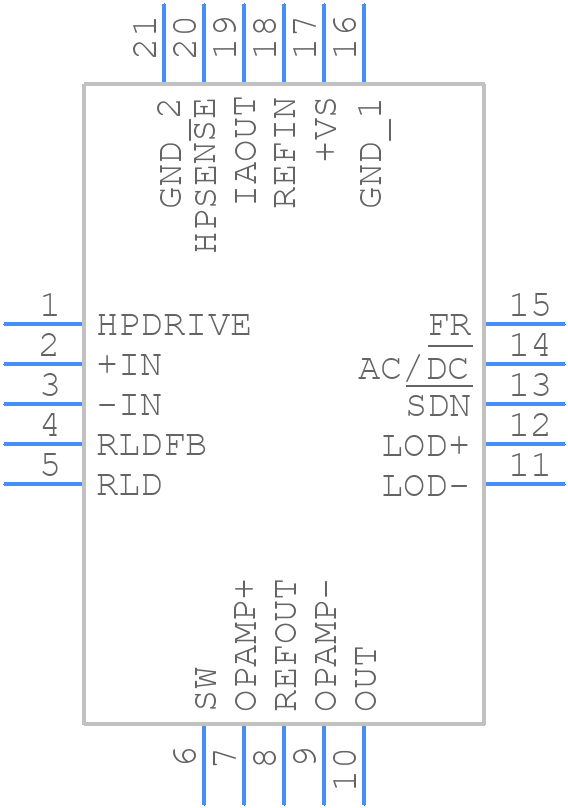

AD8232ACPZ-RL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD8232ACPZ-RL - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-20-8 (LFCSP_WQ)
click to zoom
3D Models
AD8232ACPZ-RL - Analog Devices - 3D model - Quad Flat No-Lead - CP-20-8 (LFCSP_WQ)
click to zoom

AD8232ACPZ-RL Details

  • Manufacturer Part Number:

    AD8232ACPZ-RL

  • Source Url Status Check Date:

    2013-05-01 14:56:24.97

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    CP-20-8

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    S-XQCC-N20

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC20,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    3.5 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    4 mm

AD8232ACPZ-RL Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the AD8232ACPZ-RL involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the electrodes to minimize noise and interference.
  • Optimizing the gain and filtering for your specific application involves selecting the appropriate gain settings and filter cutoff frequencies based on the signal amplitude and frequency content of your application. Consult the datasheet and application notes for guidance.
  • The maximum allowable input voltage for the AD8232ACPZ-RL is ±300 mV, exceeding which may cause damage to the device.
  • To ensure EMC with the AD8232ACPZ-RL, follow proper PCB design and layout practices, use shielding and grounding techniques, and consider using EMI filters and shielding components.
  • The recommended power supply decoupling for the AD8232ACPZ-RL involves using a 10 μF capacitor in parallel with a 100 nF capacitor, placed close to the device's power pins.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD8232ACPZ-RL Overview

Use the download button to access the AD8232ACPZ-RL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD823, or try a keyword search, such as Other Signal Circuits
