AD8232ACPZ-WP - Analog Devices

Description: Heart Rate Monitor Front End LFCSP20EP AD8232ACPZ-WP, Analogue Front End IC, 1-channel, 20-Pin LFCSP

Download AD8232ACPZ-WP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

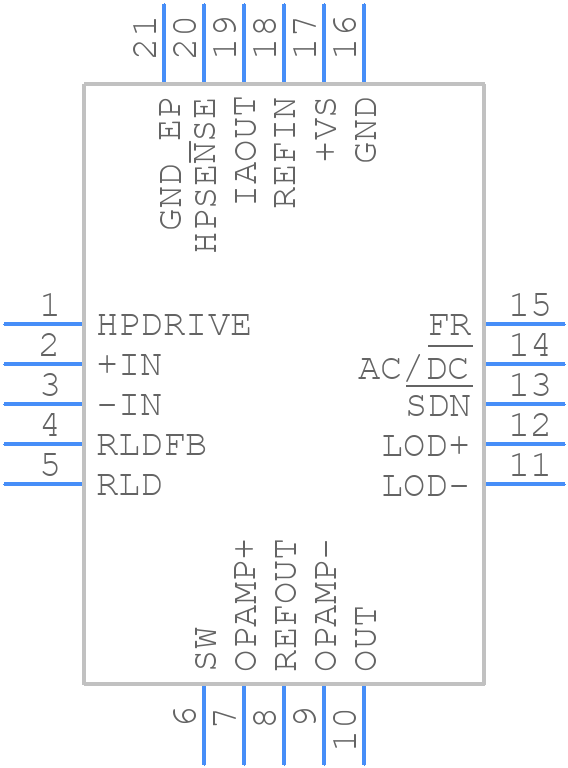

AD8232ACPZ-WP - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD8232ACPZ-WP - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-20-10 (LFCSP)
click to zoom
3D Models
AD8232ACPZ-WP - Analog Devices - 3D model - Quad Flat No-Lead - CP-20-10 (LFCSP)
click to zoom

AD8232ACPZ-WP Details

  • Manufacturer Part Number:

    AD8232ACPZ-WP

  • Source Url Status Check Date:

    2013-05-01 14:56:24.98

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    CP-20-8

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    S-XQCC-N20

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC20,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    3.5 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

AD8232ACPZ-WP Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the AD8232ACPZ-WP involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the electrodes to minimize noise and interference.
  • Optimizing the gain and filtering for your specific application involves selecting the appropriate gain settings and filter cutoff frequencies based on the signal amplitude and frequency content of your application. You may need to experiment with different settings and evaluate the performance using signal analysis tools.
  • When using the AD8232ACPZ-WP, it's essential to consider EMI and RFI shielding to minimize electromagnetic interference. This can be achieved by using a metal shield around the device, keeping the device away from sources of electromagnetic radiation, and using shielded cables.
  • To ensure proper calibration, you should follow the calibration procedure outlined in the datasheet, which involves applying a known input signal and adjusting the gain and offset settings to achieve the desired output. You may also need to perform periodic recalibration to maintain accuracy.
  • The AD8232ACPZ-WP requires a single 2.7 V to 5.5 V power supply, and it's essential to ensure a stable and noise-free power supply to maintain the device's performance and accuracy.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD8232ACPZ-WP Overview

Use the download button to access the AD8232ACPZ-WP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD823, or try a keyword search, such as Other Signal Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
