AD8236ARMZ-R7 - Analog Devices

Description: Instrumentation Amplifiers 40uA Micro Power In Amp

Download AD8236ARMZ-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

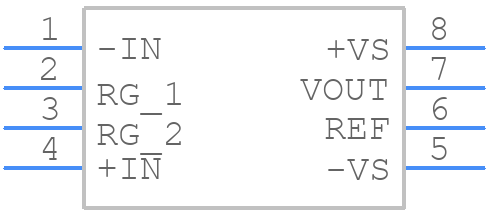

Symbol
AD8236ARMZ-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD8236ARMZ-R7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RM-8
click to zoom
3D Models
AD8236ARMZ-R7 - Analog Devices - 3D model - Small Outline Packages - RM-8
click to zoom

AD8236ARMZ-R7 Details

  • Manufacturer Part Number:

    AD8236ARMZ-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    RM-8

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Amplifier Type:

    INSTRUMENTATION AMPLIFIER

  • Average Bias Current-Max (IIB):

    0.0006 µA

  • Bandwidth (3dB)-Nom:

    0.023 MHz

  • Common-mode Reject Ratio-Min:

    86 dB

  • Input Offset Current-Max (IIO):

    0.00013 µA

  • Input Offset Voltage-Max:

    3500 µV

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage Limit-Max:

    -3 V

  • Neg Supply Voltage-Nom (Vsup):

    -2.5 V

  • Non-linearity-Max:

    0.001%

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR, 7 INCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Slew Rate-Nom:

    0.009 V/us

  • Supply Current-Max:

    0.04 mA

  • Supply Voltage Limit-Max:

    3 V

  • Supply Voltage-Nom (Vsup):

    1.8 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Voltage Gain-Max:

    200

  • Voltage Gain-Min:

    5

  • Width:

    3 mm

AD8236ARMZ-R7 Frequently Asked Questions (FAQs)

  • The AD8236 datasheet provides a recommended layout and placement guide, but it's essential to follow good PCB design practices, such as keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the electrodes. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog ground plane to minimize noise and interference.
  • To optimize the AD8236's performance, it's essential to understand the specific requirements of your application. This includes selecting the correct gain and filter settings, optimizing the electrode placement and design, and ensuring proper shielding and grounding. Additionally, you may need to adjust the device's settings based on the specific biopotential signals you're measuring, such as ECG or EEG.
  • While the AD8236 has a high CMRR, it's not infinite. The CMRR can be affected by factors such as the quality of the electrodes, the impedance of the skin, and the presence of noise and interference. It's essential to understand the limitations of the CMRR and take steps to minimize common-mode noise, such as using a driven right leg (DRL) circuit or implementing a common-mode feedback (CMF) system.
  • Calibrating the AD8236 involves adjusting the device's gain and offset settings to match the specific requirements of your application. This may involve using a calibration signal or a known reference voltage to adjust the device's settings. It's essential to follow the calibration procedure outlined in the datasheet and to verify the device's performance using a known good signal.
  • The AD8236 has a low power consumption of 170 μA (typical) and a shutdown mode that reduces power consumption to 1 μA (typical). However, it's essential to consider the thermal implications of the device's power consumption, especially in high-temperature environments. Ensure proper thermal design and heat dissipation to prevent overheating and ensure reliable operation.
