AD823AN - Analog Devices

Description: IC OPAMP JFET 2 CIRCUIT 8DIP

Download AD823AN Model

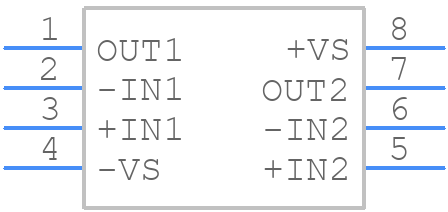

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
AD823AN - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - N-8 (BSC)
click to zoom
3D Models
AD823AN - Analog Devices  - 3D model - Dual-In-Line Packages - N-8 (BSC)
click to zoom

AD823AN Details

  • Manufacturer Part Number:

    AD823AN

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    DIP

  • Package Description:

    PLASTIC, MO-095AA, DIP-8

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.005 µA

  • Bias Current-Max (IIB) @25C:

    0.00003 µA

  • Common-mode Reject Ratio-Min:

    66 dB

  • Common-mode Reject Ratio-Nom:

    82 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    3500 µV

  • JESD-30 Code:

    R-PDIP-T8

  • JESD-609 Code:

    e0

  • Length:

    9.88 mm

  • Low-Bias:

    YES

  • Low-Offset:

    NO

  • Micropower:

    NO

  • Neg Supply Voltage Limit-Max:

    -18 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.33 mm

  • Slew Rate-Min:

    17 V/us

  • Slew Rate-Nom:

    25 V/us

  • Supply Current-Max:

    8.4 mA

  • Supply Voltage Limit-Max:

    18 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    NO

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    TIN LEAD

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Voltage Gain-Min:

    30000

  • Wideband:

    NO

  • Width:

    7.62 mm

AD823AN Frequently Asked Questions (FAQs)

  • The AD823AN is a sensitive analog device, and proper layout and placement are crucial for optimal performance. It is recommended to place the AD823AN close to the electrodes, use a ground plane, and keep the analog and digital signals separate. A 4-layer PCB with a dedicated analog ground layer is recommended. Refer to the AD823AN evaluation board layout for a reference design.
  • The AD823AN has a built-in filter, but additional filtering may be necessary to remove noise and interference. A common approach is to use a notch filter to remove 50/60 Hz power line noise, followed by a low-pass filter to remove high-frequency noise. Digital filtering techniques such as wavelet denoising or adaptive filtering can also be used.
  • The optimal gain setting depends on the specific ECG application and the signal amplitude. The AD823AN has a gain range of 1 to 100, and a gain of 100 is typically used for most ECG applications. However, if the signal amplitude is very small, a higher gain may be necessary. It is recommended to experiment with different gain settings to find the optimal value for your specific application.
  • The AD823AN requires calibration to ensure accurate ECG measurements. Calibration involves adjusting the gain and offset to match the signal amplitude and DC offset of the ECG signal. A calibration procedure can be implemented using a known reference signal, such as a calibration signal generator or a known ECG signal. The calibration procedure should be performed at the beginning of each measurement session.
  • The power consumption of the AD823AN depends on the operating mode and the supply voltage. In normal operation, the power consumption is typically around 1.5 mA. To reduce power consumption, the AD823AN can be operated in low-power mode, which reduces the power consumption to around 0.5 mA. Additionally, the supply voltage can be reduced to minimize power consumption.
