AD823ANZ - Analog Devices

Description: AD823ANZ, Dual Operational Amplifier Rail-Rail 5 to 28V, 8-Pin PDIP

Download AD823ANZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

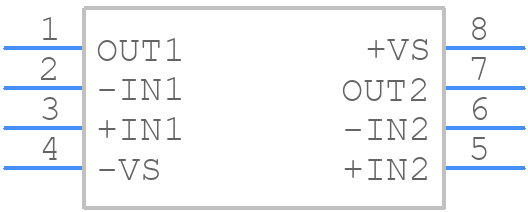

AD823ANZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD823ANZ - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - N-8
click to zoom
3D Models
AD823ANZ - Analog Devices - 3D model - Dual-In-Line Packages - N-8
click to zoom

AD823ANZ Details

  • Manufacturer Part Number:

    AD823ANZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DIP

  • Package Description:

    PLASTIC, MO-095AA, DIP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    N-8

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.00003 µA

  • Bias Current-Max (IIB) @25C:

    0.00003 µA

  • Common-mode Reject Ratio-Min:

    66 dB

  • Common-mode Reject Ratio-Nom:

    76 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    3500 µV

  • JESD-30 Code:

    R-PDIP-T8

  • JESD-609 Code:

    e3

  • Length:

    9.88 mm

  • Low-Bias:

    YES

  • Low-Offset:

    NO

  • Micropower:

    NO

  • Neg Supply Voltage Limit-Max:

    -18 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.33 mm

  • Slew Rate-Min:

    13 V/us

  • Slew Rate-Nom:

    25 V/us

  • Supply Current-Max:

    8.4 mA

  • Supply Voltage Limit-Max:

    18 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    NO

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Voltage Gain-Min:

    12000

  • Wideband:

    NO

  • Width:

    7.62 mm

AD823ANZ Frequently Asked Questions (FAQs)

  • The AD823ANZ is a sensitive analog device, and proper layout and placement are crucial for optimal performance. It is recommended to place the device close to the electrodes, use a ground plane, and keep the analog and digital signals separate to minimize noise and interference.
  • The gain and filtering of the AD823ANZ can be optimized by selecting the appropriate gain settings and filter cutoff frequencies based on the specific application requirements. The datasheet provides guidance on gain settings and filter characteristics, but additional testing and experimentation may be necessary to achieve optimal performance.
  • Proper power supply decoupling and filtering are essential for the AD823ANZ. It is recommended to use a low-ESR capacitor (e.g., 10uF) in parallel with a high-frequency capacitor (e.g., 100nF) to decouple the power supply. Additionally, a ferrite bead or a pi-filter can be used to filter out high-frequency noise.
  • To ensure EMC with the AD823ANZ, it is recommended to follow proper PCB design practices, such as using a ground plane, minimizing trace lengths, and using shielding and filtering to reduce electromagnetic radiation. Additionally, the device should be placed in a shielded enclosure to prevent electromagnetic interference.
  • The AD823ANZ requires calibration to ensure accurate measurements. The recommended calibration procedure involves applying a known input signal, measuring the output, and adjusting the gain and offset settings accordingly. The datasheet provides guidance on the calibration procedure, but additional testing and experimentation may be necessary to achieve optimal performance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD823ANZ Overview

Use the download button to access the AD823ANZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD823, or try a keyword search, such as Operational Amplifiers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
