AD8244ARMZ footprint, schematic symbol and 3D model by Analog Devices

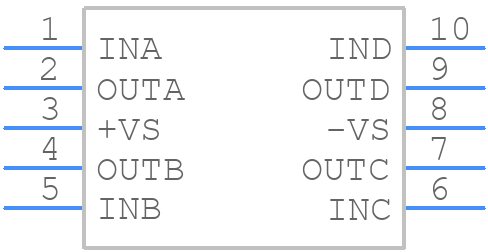

Symbol

click to zoom

PCB Footprints

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for AD8244ARMZ
Part Number AD8244ARMZ
Manufacturer Analog Devices
Pin Count 10
Part Category Inductor
Package Category Small Outline Packages
Footprint Name Small Outline Packages - RM-10(MSOP)
Released Date Jan 15, 2018
Last Modified Date May 7, 2025 11:33 AM UTC
Pinout / Pin List Click Here (Member Only)

AD8244ARMZ Details

Manufacturer Part Number:
AD8244ARMZ
Brand Name:
Analog Devices Inc
Pbfree Code:
No
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
MSOP-10
Pin Count:
10
Manufacturer Package Code:
RM-10
Country Of Origin:
Taiwan
ECCN Code:
EAR99
HTS Code:
8542.33.00.01
Manufacturer:
Analog Devices Inc
YTEOL:
10
Amplifier Type:
BUFFER
Average Bias Current-Max (IIB):
0.00001 µA
Bandwidth (3dB)-Nom:
3.3 MHz
Bias Current-Max (IIB) @25C:
0.00001 µA
Input Offset Voltage-Max:
600 µV
JESD-30 Code:
S-PDSO-G10
JESD-609 Code:
e3
Length:
3 mm
Moisture Sensitivity Level:
1
Neg Supply Voltage Limit-Max:
-18 V
Neg Supply Voltage-Nom (Vsup):
-5 V
Number of Functions:
4
Number of Terminals:
10
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
TSSOP
Package Equivalence Code:
TSSOP10,.19,20
Package Shape:
SQUARE
Package Style:
SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.1 mm
Slew Rate-Nom:
0.8 V/us
Supply Current-Max:
1.2 mA
Supply Voltage Limit-Max:
18 V
Supply Voltage-Nom (Vsup):
5 V
Surface Mount:
YES
Technology:
BIPOLAR
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Matte Tin (Sn)
Terminal Form:
GULL WING
Terminal Pitch:
0.5 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
3 mm

AD8244ARMZ Frequently Asked Questions (FAQs)

The AD8244ARMZ is a high-gain, high-impedance amplifier, so it's crucial to follow proper layout and placement guidelines to minimize noise and ensure optimal performance. Place the amplifier close to the signal source, use a ground plane, and keep the input traces short and shielded. Also, avoid running digital lines near the amplifier's inputs.
To optimize the gain and bandwidth of the AD8244ARMZ, you'll need to consider your specific application's requirements. The gain can be adjusted by selecting the appropriate feedback resistors, while the bandwidth can be optimized by selecting the correct capacitor values. Consult the datasheet and application notes for guidance on selecting the optimal component values for your application.
The AD8244ARMZ requires a stable power supply to ensure optimal performance. Key considerations include using a low-noise power supply, decoupling the power pins with capacitors, and ensuring a stable voltage reference. Additionally, consider using a voltage regulator or a low-dropout regulator to provide a stable voltage supply.
To troubleshoot common issues with the AD8244ARMZ, start by checking the power supply and ensuring it's stable and clean. Verify that the input signals are within the recommended range and that the amplifier is properly biased. Check for oscillation or instability by monitoring the output signal with an oscilloscope. If issues persist, consult the datasheet and application notes for guidance on troubleshooting and optimization.
The AD8244ARMZ is sensitive to temperature, so it's essential to consider thermal management to ensure reliable operation. Ensure good airflow around the device, use a heat sink if necessary, and avoid operating the device near its maximum temperature rating. Consult the datasheet for thermal characteristics and guidelines on thermal management.
