AD8244BRMZ footprint, schematic symbol and 3D model by Analog Devices

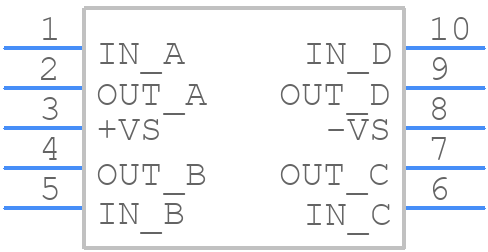

Symbol

click to zoom

PCB Footprints

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for AD8244BRMZ
Part Number AD8244BRMZ
Manufacturer Analog Devices
Pin Count 10
Part Category Integrated Circuit
Package Category Small Outline Packages
Footprint Name Small Outline Packages - RM-10(MSOP)
Released Date Apr 21, 2018
Last Modified Date May 7, 2025 11:33 AM UTC
Pinout / Pin List Click Here (Member Only)

AD8244BRMZ Details

Manufacturer Part Number:
AD8244BRMZ
Brand Name:
Analog Devices Inc
Pbfree Code:
No
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
MSOP-10
Pin Count:
10
Manufacturer Package Code:
RM-10
Country Of Origin:
Taiwan
ECCN Code:
EAR99
HTS Code:
8542.33.00.01
Manufacturer:
Analog Devices Inc
YTEOL:
10
Amplifier Type:
BUFFER
Average Bias Current-Max (IIB):
0.000002 µA
Bandwidth (3dB)-Nom:
3.3 MHz
Bias Current-Max (IIB) @25C:
0.000003 µA
Input Offset Voltage-Max:
350 µV
JESD-30 Code:
S-PDSO-G10
JESD-609 Code:
e3
Length:
3 mm
Moisture Sensitivity Level:
1
Neg Supply Voltage Limit-Max:
-18 V
Neg Supply Voltage-Nom (Vsup):
-5 V
Number of Functions:
4
Number of Terminals:
10
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
TSSOP
Package Equivalence Code:
TSSOP10,.19,20
Package Shape:
SQUARE
Package Style:
SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.1 mm
Slew Rate-Nom:
0.8 V/us
Supply Current-Max:
1.2 mA
Supply Voltage Limit-Max:
18 V
Supply Voltage-Nom (Vsup):
5 V
Surface Mount:
YES
Technology:
BIPOLAR
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Matte Tin (Sn)
Terminal Form:
GULL WING
Terminal Pitch:
0.5 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
3 mm

AD8244BRMZ Frequently Asked Questions (FAQs)

The AD8244BRMZ is a high-speed amplifier, and as such, it requires careful layout and placement to minimize noise and ensure optimal performance. It is recommended to keep the input and output traces as short as possible, and to use a solid ground plane to reduce noise. Additionally, it is recommended to place the amplifier close to the signal source and to use a low-impedance output to reduce ringing and oscillation.
The gain resistor values for the AD8244BRMZ depend on the specific application and the desired gain. The datasheet provides a gain equation that can be used to calculate the required resistor values. Additionally, Analog Devices provides a gain calculator tool on their website that can be used to simplify the process.
The maximum power dissipation of the AD8244BRMZ is 1.4W. To ensure that this is not exceeded, the user should calculate the power dissipation based on the supply voltage, output current, and package thermal resistance. The datasheet provides a power dissipation calculation equation and a thermal resistance value to aid in this calculation.
The AD8244BRMZ is a high-speed amplifier and can be prone to high-frequency noise and oscillations. To filter out these unwanted signals, it is recommended to use a low-pass filter or a ferrite bead in series with the output. Additionally, the user can add a capacitor in parallel with the output to reduce ringing and oscillation.
The recommended supply voltage for the AD8244BRMZ is 5V, and the recommended decoupling capacitor value is 0.1uF to 1uF. The decoupling capacitor should be placed as close as possible to the supply pins to reduce noise and ensure optimal performance.

Trust Checks

Expert Contribution

System Verified

Community Approved

AD8244BRMZ Overview

Use the download button to access the AD8244BRMZ schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like AD824, or try a keyword search, such as Buffer Amplifiers
