AD8260ACPZ-R7 - Analog Devices

Description: ANALOG DEVICES - AD8260ACPZ-R7 - PROGRAMMABLE GAIN AMP, 195MHZ, LFCSP-32

Download AD8260ACPZ-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

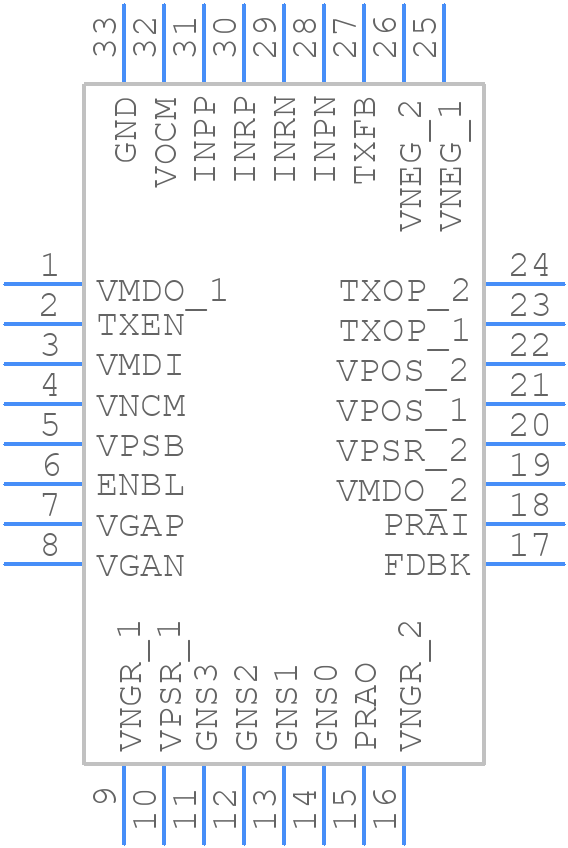

AD8260ACPZ-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD8260ACPZ-R7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-32-21
click to zoom
3D Models
AD8260ACPZ-R7 - Analog Devices - 3D model - Quad Flat No-Lead - CP-32-21
click to zoom

AD8260ACPZ-R7 Details

  • Manufacturer Part Number:

    AD8260ACPZ-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    LFCSP-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    CP-32-21

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    ALSO REQUIRES 3V TO 10V SINGLE SUPPLY

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    S-XQCC-N32

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Neg Supply Voltage-Max (Vsup):

    -10 V

  • Neg Supply Voltage-Min (Vsup):

    -3.3 V

  • Neg Supply Voltage-Nom (Vsup):

    -5 V

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    10 V

  • Supply Voltage-Min (Vsup):

    3.3 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    5 mm

AD8260ACPZ-R7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD8260ACPZ-R7 involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure proper calibration, follow the calibration procedure outlined in the datasheet, which involves applying a known input voltage and adjusting the offset and gain trim pins accordingly. It's also important to ensure the device is operated within its specified temperature range and power supply voltage.
  • The recommended power-up sequence for the AD8260ACPZ-R7 is to first apply the analog power supply (VCC) followed by the digital power supply (VDD). This ensures that the analog circuitry is powered up before the digital circuitry, preventing any potential damage or malfunction.
  • To troubleshoot issues with the AD8260ACPZ-R7, start by verifying the power supply voltages and ensuring they are within the specified range. Next, check the input signals and ensure they are within the specified range and not exceeding the maximum ratings. If the issue persists, consult the datasheet and application notes for guidance on troubleshooting and debugging.
  • The recommended method for thermal management of the AD8260ACPZ-R7 is to provide adequate airflow around the device, ensuring a minimum clearance of 1 mm around the package. Additionally, consider using a heat sink or thermal interface material to improve heat dissipation, especially in high-power or high-temperature applications.
