AD8260ACPZ-WP - Analog Devices

Description: Analog Devices AD8260ACPZ-WP, Line Transceiver, 3.3 → 10 V, 32-Pin LFCSP

Download AD8260ACPZ-WP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

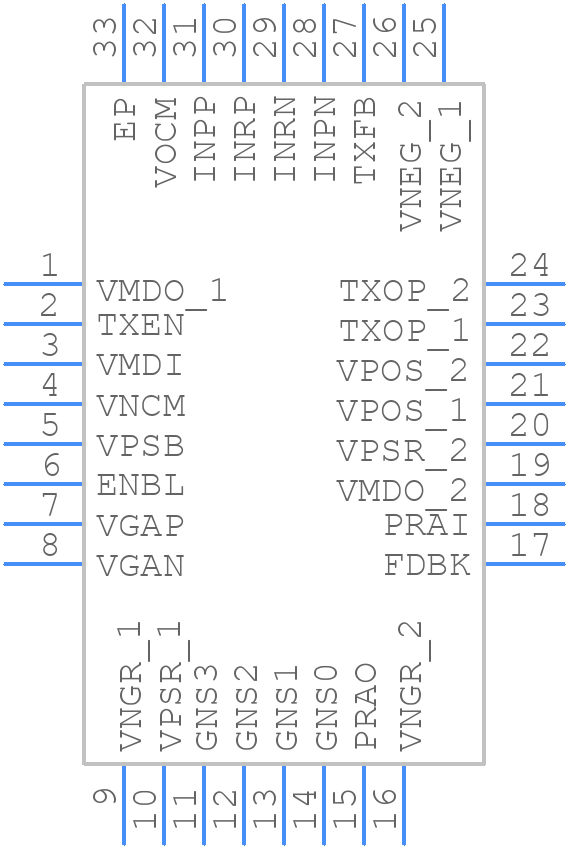

AD8260ACPZ-WP - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD8260ACPZ-WP - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-32-21
click to zoom
3D Models
AD8260ACPZ-WP - Analog Devices - 3D model - Quad Flat No-Lead - CP-32-21
click to zoom

AD8260ACPZ-WP Details

  • Manufacturer Part Number:

    AD8260ACPZ-WP

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    LFCSP-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    CP-32-21

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    ALSO REQUIRES 3V TO 10V SINGLE SUPPLY

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    S-XQCC-N32

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Neg Supply Voltage-Max (Vsup):

    -10 V

  • Neg Supply Voltage-Min (Vsup):

    -3.3 V

  • Neg Supply Voltage-Nom (Vsup):

    -5 V

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    10 V

  • Supply Voltage-Min (Vsup):

    3.3 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    5 mm

AD8260ACPZ-WP Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate analog ground plane is recommended. Keep the analog and digital grounds separate and connect them at a single point. Use a star topology for the power supply and keep the power traces away from the analog signals.
  • Use the gain and offset adjustment pins (GAIN and OFFSET) to adjust the amplifier's gain and offset. The gain can be adjusted from 1 to 10, and the offset can be adjusted from -2.5V to +2.5V. Consult the datasheet for the specific pin connections and adjustment procedures.
  • Power up the device in the following sequence: VCC, AVCC, and then the analog input signals. Ensure that the power supplies are stable and within the recommended operating range before applying the analog input signals.
  • Use a shielded enclosure, keep the PCB away from radiating sources, and use EMI filters on the input and output signals. Ensure that the PCB layout is optimized for minimal radiation and that the device is properly grounded.
  • The recommended operating temperature range is -40°C to +125°C. The device's performance may degrade at extreme temperatures, with increased noise and reduced bandwidth. Ensure that the device is operated within the recommended temperature range for optimal performance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD8260ACPZ-WP Overview

Use the download button to access the AD8260ACPZ-WP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD826, or try a keyword search, such as Other Analog ICs

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
