AD8264ACPZ - Analog Devices

Description: Quad, 235 MHz, DC-Coupled VGA and Differential Output Amplifier

Download AD8264ACPZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

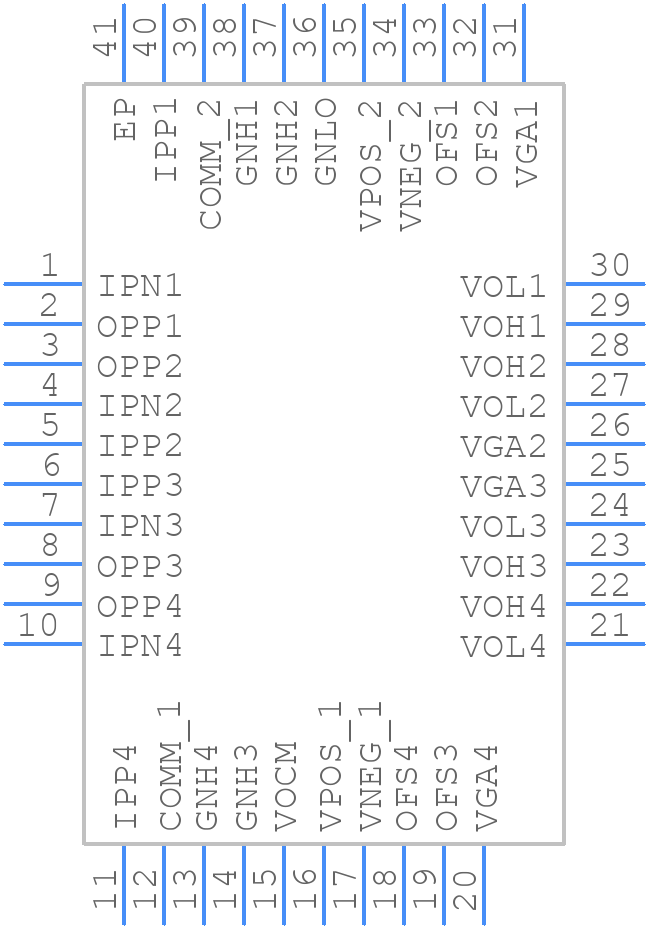

Symbol
AD8264ACPZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD8264ACPZ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - AD8264ACPZ
click to zoom
3D Models
AD8264ACPZ - Analog Devices - 3D model - Quad Flat No-Lead - AD8264ACPZ
click to zoom

AD8264ACPZ Details

  • Manufacturer Part Number:

    AD8264ACPZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    LFCSP-40

  • Pin Count:

    40

  • Manufacturer Package Code:

    CP-40-9

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    S-XQCC-N40

  • JESD-609 Code:

    e3

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    3

  • Neg Supply Voltage-Max (Vsup):

    -5 V

  • Neg Supply Voltage-Min (Vsup):

    -2.5 V

  • Neg Supply Voltage-Nom (Vsup):

    -3.3 V

  • Number of Functions:

    1

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    5 V

  • Supply Voltage-Min (Vsup):

    2.5 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6 mm

AD8264ACPZ Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate analog ground plane is recommended. Keep the analog and digital grounds separate and connect them at a single point. Use a star topology for the power supply connections and keep the input and output traces short and direct.
  • The AD8264ACPZ requires a dual power supply (±5V to ±15V) and a bias voltage (VCC) of 5V. Ensure the power supplies are well-regulated and decoupled with 10uF and 0.1uF capacitors. The bias voltage (VCC) should be decoupled with a 10uF capacitor.
  • The recommended input impedance is 1kΩ to 10kΩ, and the recommended output impedance is 1kΩ to 100kΩ. Impedance matching is critical for optimal performance and to prevent signal reflections.
  • Use a shielded enclosure, keep the input and output cables short, and use twisted pair or shielded cables. Ensure the PCB is properly grounded and use EMI filters or ferrite beads on the input and output lines if necessary.
  • The AD8264ACPZ has a maximum junction temperature of 150°C. Ensure good airflow around the device, use a heat sink if necessary, and avoid blocking the airflow around the device. The thermal pad on the package should be connected to a solid ground plane for optimal heat dissipation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD8264ACPZ Overview

Use the download button to access the AD8264ACPZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD826, or try a keyword search, such as Other Signal Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
