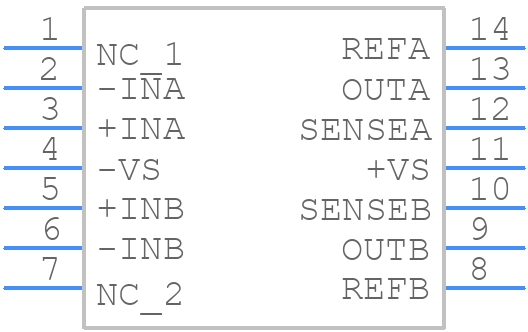

AD8273ARZ - Analog Devices

AD8273ARZ Details

• Manufacturer Part Number:

  AD8273ARZ

• Brand Name:

  Analog Devices Inc

• Pbfree Code:

  No

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  SOIC

• Package Description:

  ROHS COMPLIANT, MS-012AB, SOIC-14

• Pin Count:

  14

• Manufacturer Package Code:

  R-14

• Country Of Origin:

  Taiwan

• ECCN Code:

  EAR99

• HTS Code:

  8542.33.00.01

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  10

• Amplifier Type:

  OPERATIONAL AMPLIFIER

• Architecture:

  VOLTAGE-FEEDBACK

• Common-mode Reject Ratio-Min:

  77 dB

• Common-mode Reject Ratio-Nom:

  86 dB

• Frequency Compensation:

  YES

• Input Offset Voltage-Max:

  700 µV

• JESD-30 Code:

  R-PDSO-G14

• JESD-609 Code:

  e3

• Length:

  8.65 mm

• Low-Bias:

  YES

• Low-Offset:

  NO

• Micropower:

  YES

• Moisture Sensitivity Level:

  1

• Neg Supply Voltage Limit-Max:

  -18 V

• Neg Supply Voltage-Nom (Vsup):

  -15 V

• Number of Functions:

  2

• Number of Terminals:

  14

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SOP

• Package Equivalence Code:

  SOP14,.25

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Packing Method:

  TUBE

• Peak Reflow Temperature (Cel):

  260

• Power:

  NO

• Programmable Power:

  NO

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  1.75 mm

• Slew Rate-Min:

  20 V/us

• Supply Current-Max:

  2.5 mA

• Supply Voltage Limit-Max:

  18 V

• Supply Voltage-Nom (Vsup):

  15 V

• Surface Mount:

  YES

• Technology:

  BIPOLAR

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Matte Tin (Sn)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Unity Gain BW-Nom:

  20000

• Wideband:

  NO

• Width:

  3.9 mm
