AD8300AN - Analog Devices

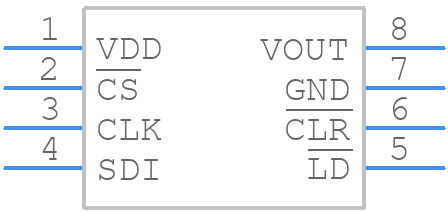

AD8300AN Details

• Manufacturer Part Number:

  AD8300AN

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  DIP

• Package Description:

  DIP-8

• Pin Count:

  8

• HTS Code:

  8542.39.00.40

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  0

• Converter Type:

  D/A CONVERTER

• Input Bit Code:

  BINARY

• Input Format:

  SERIAL

• JESD-30 Code:

  R-PDIP-T8

• JESD-609 Code:

  e0

• Length:

  9.88 mm

• Linearity Error-Max (EL):

  0.049%

• Number of Bits:

  12

• Number of Functions:

  1

• Number of Terminals:

  8

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  DIP

• Package Equivalence Code:

  DIP8,.3

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  5.33 mm

• Settling Time-Nom (tstl):

  14 µs

• Supply Current-Max:

  3 mA

• Supply Voltage-Nom:

  3 V

• Surface Mount:

  NO

• Technology:

  BIPOLAR

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  TIN LEAD

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  DUAL

• Width:

  7.62 mm
