AD8300ARZ-REEL - Analog Devices

Description: Digital to Analog Converters - DAC +3V SINGLE SUPPLY DAC

Download AD8300ARZ-REEL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

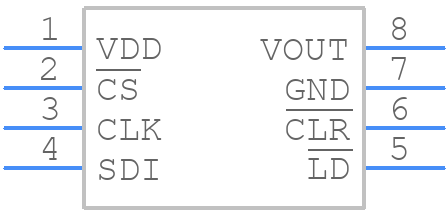

AD8300ARZ-REEL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD8300ARZ-REEL - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - R-8 (SOIC)
click to zoom
3D Models
AD8300ARZ-REEL - Analog Devices - 3D model - Small Outline Packages - R-8 (SOIC)
click to zoom

AD8300ARZ-REEL Details

  • Manufacturer Part Number:

    AD8300ARZ-REEL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    1.50 MM HEIGHT, LOW PROFILE, SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    R-8

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Linearity Error-Max (EL):

    0.049%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Settling Time-Nom (tstl):

    14 µs

  • Supply Current-Max:

    3 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

AD8300ARZ-REEL Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD8300ARZ-REEL involves keeping the input and output traces short and away from each other, using a solid ground plane, and decoupling the power supply pins with capacitors. A 4-layer PCB with a dedicated ground plane is recommended. Additionally, the datasheet provides a recommended PCB layout and land pattern that should be followed.
  • To ensure the accuracy of the output voltage of the AD8300ARZ-REEL, it is essential to follow the recommended calibration procedure outlined in the datasheet. This involves applying a known input voltage and adjusting the output voltage to match the expected value. Additionally, the output voltage should be buffered with an op-amp to prevent loading effects.
  • The maximum input voltage that the AD8300ARZ-REEL can handle is ±5.5V. Exceeding this voltage can damage the device. It is essential to ensure that the input voltage is within the recommended range to prevent damage and ensure accurate operation.
  • To reduce the noise and ripple in the output voltage of the AD8300ARZ-REEL, it is recommended to use a low-pass filter, such as a RC filter or a ferrite bead, on the output pin. Additionally, the power supply pins should be decoupled with capacitors to reduce noise and ripple. A good PCB layout and grounding scheme can also help to reduce noise and ripple.
  • The typical settling time of the AD8300ARZ-REEL is around 10µs to 100µs, depending on the input voltage and output load. This is the time it takes for the output voltage to settle to within 1% of its final value after a step change in the input voltage.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD8300ARZ-REEL Overview

Use the download button to access the AD8300ARZ-REEL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD830, or try a keyword search, such as Digital to Analog Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
