AD8302ARU - Analog Devices

Description: RF Detector 2.7GHz RF/IF GAIN PHASE DETECTOR

Download AD8302ARU Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

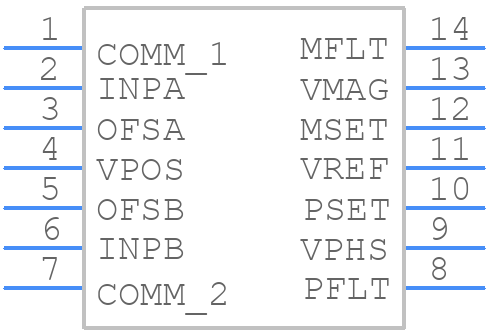

AD8302ARU - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD8302ARU - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RU-14 (TSSOP)
click to zoom
3D Models
AD8302ARU - Analog Devices - 3D model - Small Outline Packages - RU-14 (TSSOP)
click to zoom

AD8302ARU Details

  • Manufacturer Part Number:

    AD8302ARU

  • Source Url Status Check Date:

    2013-05-01 14:56:25.294

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TSSOP

  • Package Description:

    TSSOP-14

  • Pin Count:

    14

  • Manufacturer Package Code:

    RU-14

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e0

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    240

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    TIN LEAD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    4.4 mm

AD8302ARU Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD8302ARU involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended.
  • To ensure accurate gain and phase measurements, it's essential to calibrate the AD8302ARU using a known reference signal. This involves applying a calibrated signal to the input and adjusting the device's gain and phase settings accordingly. Regular recalibration is recommended to maintain accuracy.
  • The AD8302ARU can handle input powers up to +15 dBm (31.6 mW) without damage. However, it's recommended to limit the input power to +10 dBm (10 mW) or less to ensure optimal performance and prevent overheating.
  • The AD8302ARU is rated for operation from -40°C to +85°C. While it can tolerate high temperatures, it's essential to ensure proper heat sinking and airflow to prevent overheating, especially in high-temperature environments.
  • The AD8302ARU can be interfaced with a microcontroller or FPGA using a serial interface (SPI or I2C). The device's output can be connected to an ADC or a digital input pin, and the microcontroller or FPGA can then read the output data and perform further processing.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD8302ARU Overview

Use the download button to access the AD8302ARU schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD830, or try a keyword search, such as Other Analog ICs

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
