AD8302ARUZ-RL7 - Analog Devices

Description: RF Detector TSSOP LF-3GHz Gain Phase Detector

Download AD8302ARUZ-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

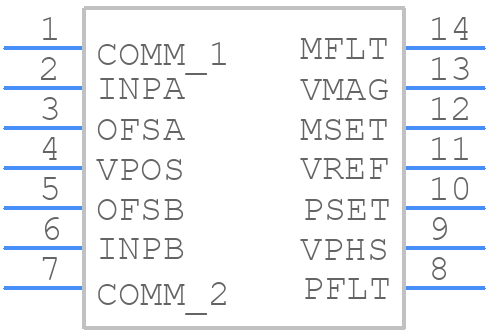

Symbol
AD8302ARUZ-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD8302ARUZ-RL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 14-Lead TSSOP
click to zoom
3D Models
AD8302ARUZ-RL7 - Analog Devices - 3D model - Small Outline Packages - 14-Lead TSSOP
click to zoom

AD8302ARUZ-RL7 Details

  • Manufacturer Part Number:

    AD8302ARUZ-RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    TSSOP-14

  • Pin Count:

    14

  • Manufacturer Package Code:

    RU-14

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

AD8302ARUZ-RL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD8302ARUZ-RL7 involves keeping the input and output traces short and symmetrical, using a solid ground plane, and minimizing the distance between the device and the power supply decoupling capacitors. A 4-layer PCB with a dedicated ground plane is recommended.
  • The AD8302ARUZ-RL7 is specified to operate from -40°C to 125°C. Ensure that the device is properly heat-sinked and that the ambient temperature is within the specified range. Avoid exposing the device to extreme temperatures during storage or operation.
  • The recommended power-up sequence for the AD8302ARUZ-RL7 is to apply the analog supply voltage (VCC) before the digital supply voltage (VDD). This ensures that the internal analog circuitry is powered up before the digital circuitry.
  • To minimize EMI, use a shielded enclosure, keep the device away from high-frequency sources, and use a low-pass filter on the input and output lines. Additionally, ensure that the PCB layout is designed to minimize radiation and that the device is properly grounded.
  • The recommended method for soldering the AD8302ARUZ-RL7 is to use a reflow soldering process with a peak temperature of 260°C. Avoid using wave soldering or hand soldering, as this can damage the device.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD8302ARUZ-RL7 Overview

Use the download button to access the AD8302ARUZ-RL7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD830, or try a keyword search, such as Other Signal Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
