AD8307AN - Analog Devices

Description: SP Amp LOG Amp Single R-R O/P 5.5V 8-Pin PDIP N Tube

Download AD8307AN Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

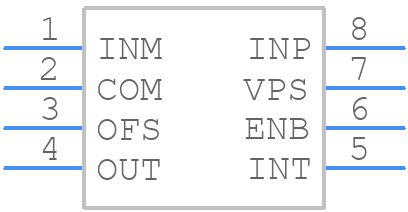

Symbol
AD8307AN - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD8307AN - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - N-8
click to zoom
3D Models
AD8307AN - Analog Devices - 3D model - Dual-In-Line Packages - N-8
click to zoom

AD8307AN Details

  • Manufacturer Part Number:

    AD8307AN

  • Source Url Status Check Date:

    2013-05-01 14:56:25.387

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    DIP

  • Package Description:

    DIP-8

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Analog IC - Other Type:

    LOG OR ANTILOG AMPLIFIER

  • Bandwidth-Nom:

    490 MHz

  • JESD-30 Code:

    R-PDIP-T8

  • JESD-609 Code:

    e0

  • Length:

    9.27 mm

  • Negative Input Voltage-Max:

    -0.3 V

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Positive Input Voltage-Max:

    4 V

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    4.57 mm

  • Supply Current-Max (Isup):

    10 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    NO

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    TIN LEAD

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

AD8307AN Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD8307AN involves keeping the input and output traces short and separate, using a solid ground plane, and placing decoupling capacitors close to the device. Additionally, it's recommended to use a 4-layer PCB with a dedicated ground plane and to avoid running high-frequency signals near the device.
  • Calibration of the AD8307AN involves applying a known input signal and adjusting the offset and gain trim pins to achieve the desired output. The device should be calibrated at multiple frequencies and temperatures to ensure accuracy across the operating range.
  • The AD8307AN can handle input powers up to +15 dBm (31.6 mW) without damage. However, it's recommended to limit the input power to +10 dBm (10 mW) or less to ensure accurate measurements and prevent overheating.
  • Yes, the AD8307AN can be used in a multipoint measurement system by connecting multiple devices in parallel and using a multiplexer to switch between the inputs. However, it's essential to ensure that the multiplexer does not introduce significant signal loss or distortion.
  • The AD8307AN has built-in overvoltage protection (OVP) and overcurrent protection (OCP) circuits that limit the input voltage and current to prevent damage. The OVP circuit limits the input voltage to 7 V, and the OCP circuit limits the input current to 100 mA.
