AD8307ANZ - Analog Devices

Description: AD8307ANZ, Logarithmic Amplifier, 3 V, 5 V Rail to Rail Output Rail to Rail, 8-Pin PDIP

Download AD8307ANZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

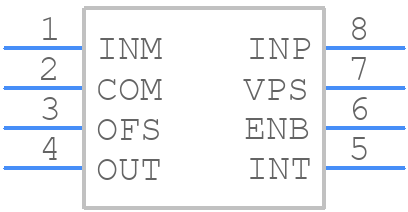

AD8307ANZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD8307ANZ - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - N-8
click to zoom
3D Models
AD8307ANZ - Analog Devices - 3D model - Dual-In-Line Packages - N-8
click to zoom

AD8307ANZ Details

  • Manufacturer Part Number:

    AD8307ANZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DIP

  • Package Description:

    DIP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    N-8

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    LOG OR ANTILOG AMPLIFIER

  • Bandwidth-Nom:

    490 MHz

  • JESD-30 Code:

    R-PDIP-T8

  • JESD-609 Code:

    e3

  • Length:

    9.27 mm

  • Negative Input Voltage-Max:

    -0.3 V

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Positive Input Voltage-Max:

    4 V

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    4.57 mm

  • Supply Current-Max (Isup):

    10 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    NO

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

AD8307ANZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD8307ANZ involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended.
  • To ensure accurate gain and phase measurements, it's essential to calibrate the AD8307ANZ using a known reference signal. Additionally, ensure that the input signals are within the recommended amplitude range, and the device is operated within its specified temperature range.
  • The AD8307ANZ can handle input powers up to +15 dBm (31.6 mW) without damage. However, it's recommended to limit the input power to +10 dBm (10 mW) or less to ensure optimal performance and minimize the risk of damage.
  • Yes, the AD8307ANZ can be used for single-ended to differential conversion. The device has a built-in balun that can convert a single-ended input signal to a differential output signal.
  • It's recommended to use a 10 μF capacitor in parallel with a 100 nF capacitor to decouple the power supply pins (VCC and GND) of the AD8307ANZ. This helps to filter out noise and ensure stable operation.
