AD8307AR-REEL - Analog Devices

Description: SP Amp LOG Amp Single R-R O/P 5.5V 8-Pin SOIC N T/R

Download AD8307AR-REEL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

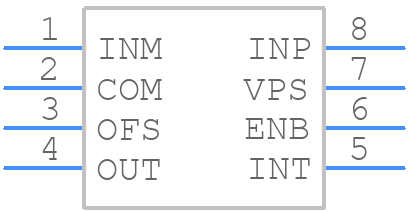

Symbol
AD8307AR-REEL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD8307AR-REEL - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - R-8 (SOIC)
click to zoom
3D Models
AD8307AR-REEL - Analog Devices - 3D model - Small Outline Packages - R-8 (SOIC)
click to zoom

AD8307AR-REEL Details

  • Manufacturer Part Number:

    AD8307AR-REEL

  • Source Url Status Check Date:

    2013-05-01 14:56:25.396

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    R-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Analog IC - Other Type:

    LOG OR ANTILOG AMPLIFIER

  • Bandwidth-Nom:

    490 MHz

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e0

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Negative Input Voltage-Max:

    -0.3 V

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    240

  • Positive Input Voltage-Max:

    4 V

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    10 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Lead (Sn85Pb15)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

AD8307AR-REEL Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD8307AR-REEL involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended. Refer to the ADI application note AN-1349 for more details.
  • To ensure accurate gain and phase measurements, it's essential to calibrate the device using a known reference signal. The AD8307AR-REEL has a calibration mode that allows you to store the gain and phase correction values. Additionally, use a high-quality signal source, and ensure that the input signals are within the specified range and impedance.
  • The AD8307AR-REEL can operate up to 2.7 GHz, but the maximum frequency depends on the specific application and the desired level of accuracy. For frequencies above 1 GHz, the device's performance may degrade, and additional filtering or signal conditioning may be required.
  • The AD8307AR-REEL has a serial interface that can be connected to a microcontroller or FPGA using a SPI or I2C interface. The device requires a 3.3V or 5V power supply, and the interface signals should be level-shifted accordingly. Refer to the ADI application note AN-1349 for more details on interface implementation.
  • The AD8307AR-REEL has a typical power consumption of 55 mA at 3.3V and 70 mA at 5V. However, the actual power consumption may vary depending on the operating frequency, input signal level, and other factors. Refer to the datasheet for more details on power consumption and thermal considerations.
