AD8307AR-REEL7 - Analog Devices

Description: Logarithmic Amplifiers DC to 500MHz 92dB

Download AD8307AR-REEL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

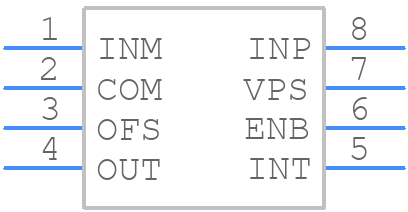

AD8307AR-REEL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD8307AR-REEL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - [SOIC_N]
click to zoom
3D Models
AD8307AR-REEL7 - Analog Devices - 3D model - Small Outline Packages - [SOIC_N]
click to zoom

AD8307AR-REEL7 Details

  • Manufacturer Part Number:

    AD8307AR-REEL7

  • Source Url Status Check Date:

    2013-05-01 14:56:25.396

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    R-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Analog IC - Other Type:

    LOG OR ANTILOG AMPLIFIER

  • Bandwidth-Nom:

    490 MHz

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e0

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Negative Input Voltage-Max:

    -0.3 V

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    240

  • Positive Input Voltage-Max:

    4 V

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    10 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Lead (Sn85Pb15)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

AD8307AR-REEL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD8307AR-REEL7 involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended. Refer to the ADI application note AN-0971 for more details.
  • To ensure accurate gain and phase measurements, it's essential to calibrate the device using a known reference signal. The AD8307AR-REEL7 has a calibration mode that allows you to store the gain and phase correction values. Additionally, use a high-quality reference signal, and ensure that the input signals are within the recommended amplitude range.
  • The AD8307AR-REEL7 can operate up to 2.7 GHz, but the maximum frequency depends on the specific application and the desired level of accuracy. For frequencies above 1 GHz, the device's performance may degrade, and additional filtering or signal conditioning may be required.
  • The AD8307AR-REEL7 has a serial interface that can be connected to a microcontroller or FPGA using a SPI or I2C interface. The device requires a 3.3V or 5V power supply, and the interface signals should be level-shifted accordingly. Refer to the ADI application note AN-1026 for more details on interfacing the AD8307AR-REEL7 with a microcontroller.
  • The AD8307AR-REEL7 has a typical power consumption of 130 mW when operating from a 3.3V supply, and 240 mW when operating from a 5V supply. The power consumption can be reduced by using the device's power-down mode, which reduces the current consumption to less than 1 mA.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD8307AR-REEL7 Overview

Use the download button to access the AD8307AR-REEL7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD830, or try a keyword search, such as Analog Computational Functions

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
