AD8307ARZ - Analog Devices

Description: AD8307ARZ, Logarithmic Amplifier, 3, 5V Rail to Rail Output Rail to Rail, 8-Pin SOIC N

Download AD8307ARZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

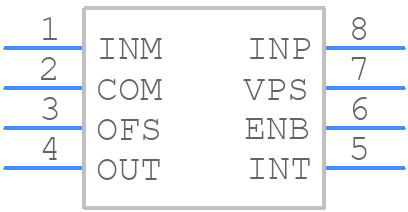

AD8307ARZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD8307ARZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - R-8 (SOIC)
click to zoom
3D Models
AD8307ARZ - Analog Devices - 3D model - Small Outline Packages - R-8 (SOIC)
click to zoom

AD8307ARZ Details

  • Manufacturer Part Number:

    AD8307ARZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    R-8

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    LOG OR ANTILOG AMPLIFIER

  • Bandwidth-Nom:

    490 MHz

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Negative Input Voltage-Max:

    -0.3 V

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Positive Input Voltage-Max:

    4 V

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    10 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

AD8307ARZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD8307ARZ involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • The AD8307ARZ is specified to operate from -40°C to 125°C. To ensure operation within this range, it's essential to provide adequate heat sinking, avoid overheating, and use thermal management techniques such as thermal pads or heat sinks. Additionally, consider the thermal resistance of the package and the PCB.
  • The recommended power-up sequence for the AD8307ARZ is to apply the analog supply voltage (VCC) before the digital supply voltage (VDD). This ensures that the analog circuitry is powered up before the digital circuitry, which helps prevent unwanted digital noise from affecting the analog circuitry.
  • To ensure accurate measurements, it's essential to properly handle the AD8307ARZ's output data. This includes using a suitable ADC with sufficient resolution and sampling rate, applying digital filtering to remove noise, and using calibration techniques to compensate for any offset or gain errors.
  • Common pitfalls to avoid when designing with the AD8307ARZ include not following the recommended PCB layout, not providing adequate power supply decoupling, not using a suitable reference voltage, and not properly handling the output data. Additionally, not considering the device's thermal characteristics and not following the recommended power-up sequence can also lead to issues.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD8307ARZ Overview

Use the download button to access the AD8307ARZ schematic symbol, PCB footprint, and 3D model.
